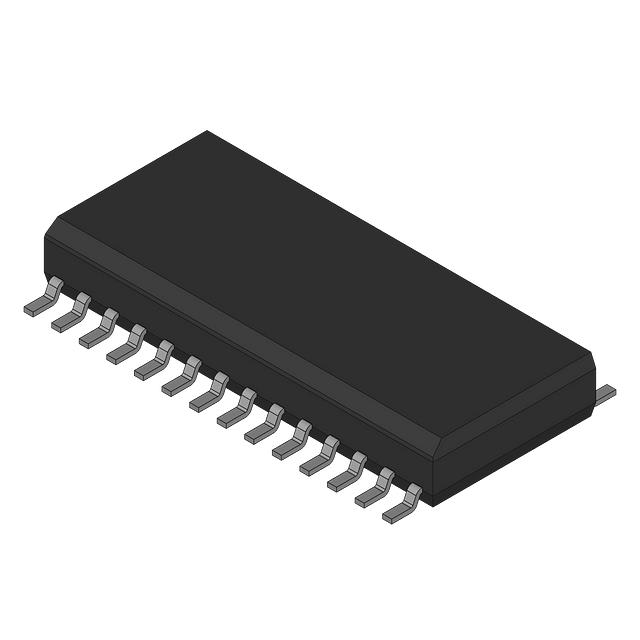

IR2135STRPBF

Active

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 28SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IR2135STRPBF

Active

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 28SOIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IR2135STRPBF

Channel Type	3-Phase
Current - Peak Output (Source, Sink) [custom]	500 mA
Current - Peak Output (Source, Sink) [custom]	250 mA
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET, IGBT
High Side Voltage - Max (Bootstrap) [Max]	600 V
Input Type	Inverting
Logic Voltage - VIL, VIH [custom]	2.2 V
Logic Voltage - VIL, VIH [custom]	0.8 V
Mounting Type	Surface Mount
Number of Drivers	6
Operating Temperature	125 ¯C
Package / Case	28-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	28-SOIC
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	10 VDC

IR2135 Series

Part	Supplier Device Package	Channel Type	Package / Case	Package / Case [x]	Package / Case [y]	High Side Voltage - Max (Bootstrap) [Max]	Input Type	Driven Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Mounting Type	Number of Drivers	Gate Type	Package / Case	Package / Case
Infineon Technologies IR2135SPBF	28-SOIC	3-Phase	28-SOIC	0.295 in	7.5 mm	600 V	Inverting	Half-Bridge	20 V	10 VDC	500 mA	250 mA	125 ¯C	2.2 V	0.8 V	Surface Mount	6	IGBT N-Channel MOSFET
Infineon Technologies IR2135STR	28-SOIC	3-Phase	28-SOIC	0.295 in	7.5 mm	600 V	Inverting	Half-Bridge	20 V	10 VDC	500 mA	250 mA	125 ¯C	2.2 V	0.8 V	Surface Mount	6	IGBT N-Channel MOSFET
Infineon Technologies IR2135JPBF	44-PLCC 32 Leads (16.58x16.58)	3-Phase	44-LCC (J-Lead)			600 V	Inverting	Half-Bridge	20 V	10 VDC	500 mA	250 mA	125 ¯C	2.2 V	0.8 V	Surface Mount	6	IGBT N-Channel MOSFET	32 Leads
Infineon Technologies IR2135	28-PDIP	3-Phase	28-DIP			600 V	Inverting	Half-Bridge	20 V	10 VDC	500 mA	250 mA	125 ¯C	2.2 V	0.8 V	Through Hole	6	IGBT N-Channel MOSFET	0.6 in	15.24 mm
Infineon Technologies IR2135JPBF	44-PLCC 32 Leads (16.58x16.58)	3-Phase	44-LCC (J-Lead)			600 V	Inverting	Half-Bridge	20 V	10 VDC	500 mA	250 mA	125 ¯C	2.2 V	0.8 V	Surface Mount	6	IGBT N-Channel MOSFET	32 Leads
Infineon Technologies IR2135STRPBF	28-SOIC	3-Phase	28-SOIC	0.295 in	7.5 mm	600 V	Inverting	Half-Bridge	20 V	10 VDC	500 mA	250 mA	125 ¯C	2.2 V	0.8 V	Surface Mount	6	IGBT N-Channel MOSFET
Infineon Technologies IR2135STRPBF	28-SOIC	3-Phase	28-SOIC	0.295 in	7.5 mm	600 V	Inverting	Half-Bridge	20 V	10 VDC	500 mA	250 mA	125 ¯C	2.2 V	0.8 V	Surface Mount	6	IGBT N-Channel MOSFET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	49	$ 6.19
		49	$ 6.19

Description

General part information

IR2135 Series

Half-Bridge Gate Driver IC Inverting 28-SOIC
