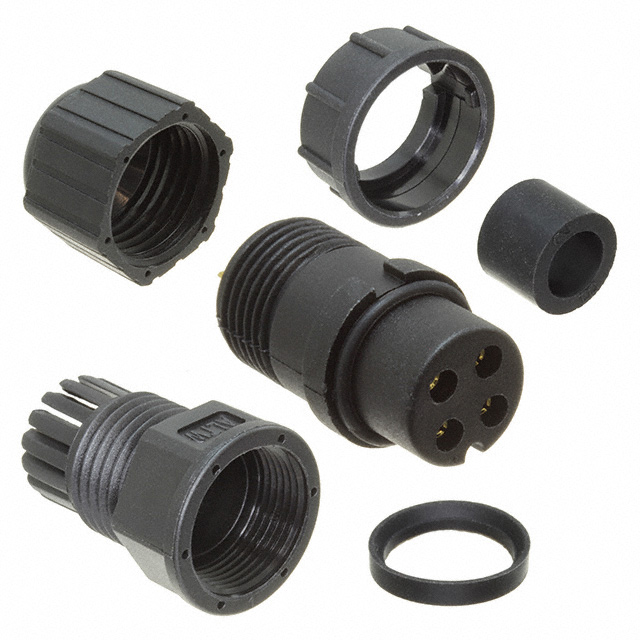

BB-04BFFA-LL7001

Active

Amphenol LTW

CIRCULAR CONNECTOR, RCPT, 4POS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BB-04BFFA-LL7001

Active

Amphenol LTW

CIRCULAR CONNECTOR, RCPT, 4POS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BB-04BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

BB-04BFFA Series

Part	Housing Color	Mounting Type	Features	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Note	Ingress Protection	Number of Positions	Contact Shape	Type	Insert Material	Connector Type	Shell Size - Insert	Shielding	Contact Type	Primary Material	Fastening Type	Voltage Rating	Color	Termination	Contact Finish - Mating	Backshell Material, Plating	Current Rating (Amps)	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Shell Material	Material Flammability Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Amphenol LTW BB-04BFFA-QL8SNP	Black	Free Hanging (In-Line)	Backshell	Keyed	-40 °C	105 ░C	Contacts Not Included	IP68 - Dust Tight Waterproof	4	Circular	For Female Sockets	Thermoplastic	Plug Housing	B	Unshielded	Crimp	Plastic	Push-Pull
Amphenol LTW BB-04BFFA-QL8APP		Free Hanging (In-Line)	Backshell	Keyed	-40 °C	105 ░C		IP68 - Dust Tight Waterproof	4			Thermoplastic	Female Sockets Plug	B	Unshielded		Plastic		300 VDC	Black	Crimp	Gold	Thermoplastic	10 A	Copper Alloy
Amphenol LTW BB-04BFFA-LL7001		Free Hanging (In-Line)	Backshell Coupling Nut	Keyed	-40 °C	105 ░C		IP67 - Dust Tight Waterproof	4			Polyamide (PA) Nylon Glass Filled	Female Sockets Plug	B	Unshielded		Plastic	Bayonet Lock		Black		Gold	Nylon Polyamide (PA)	10 A	Copper Alloy	4.5 mm 6.5 mm	0.177 in 0.256 in	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BB-04BFFA-QL8MPP		Free Hanging (In-Line)	Backshell Strain Relief	Keyed	-40 °C	105 ░C		IP68 - Dust Tight Waterproof	4			Polyamide (PA) Nylon Glass Filled	Female Sockets Plug	B	Unshielded		Plastic	Push-Pull	300 VAC	Black	Crimp	Gold		10 A	Copper Alloy			Glass Filled Nylon Polyamide (PA)	UL94 V-0	8 mm	6 mm	0.315 in	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.07
		10	$ 11.58
		100	$ 10.10
		1000	$ 7.90
Newark	Each	1	$ 13.34
		5	$ 12.75
		10	$ 12.22
		25	$ 11.41
		50	$ 10.45
		100	$ 9.80
		250	$ 9.59

Description

General part information

BB-04BFFA Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
