BB-04BFFA-QL8MPP
ActiveAmphenol LTW

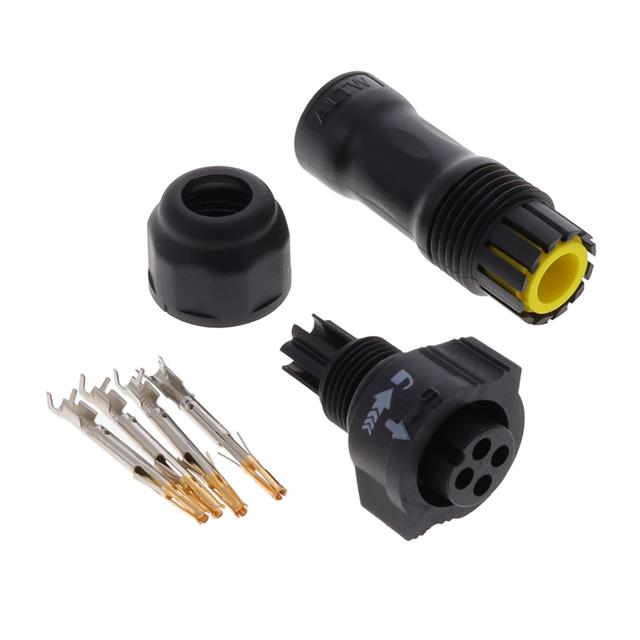

CIRCULAR CONNECTOR, STANDARD SIZE, X-LOK SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, CRIMP SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
BB-04BFFA-QL8MPP
ActiveAmphenol LTW
CIRCULAR CONNECTOR, STANDARD SIZE, X-LOK SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, CRIMP SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-04BFFA-QL8MPP |
|---|---|
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | B |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 300 VAC |
BB-04BFFA Series
| Part | Housing Color | Mounting Type | Features | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Note | Ingress Protection | Number of Positions | Contact Shape | Type | Insert Material | Connector Type | Shell Size - Insert | Shielding | Contact Type | Primary Material | Fastening Type | Voltage Rating | Color | Termination | Contact Finish - Mating | Backshell Material, Plating | Current Rating (Amps) | Contact Material | Cable Opening [diameter] | Cable Opening [diameter] | Shell Material | Material Flammability Rating | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Black | Free Hanging (In-Line) | Backshell | Keyed | -40 °C | 105 ░C | Contacts Not Included | IP68 - Dust Tight Waterproof | 4 | Circular | For Female Sockets | Thermoplastic | Plug Housing | B | Unshielded | Crimp | Plastic | Push-Pull | |||||||||||||||
Amphenol LTW | Free Hanging (In-Line) | Backshell | Keyed | -40 °C | 105 ░C | IP68 - Dust Tight Waterproof | 4 | Thermoplastic | Female Sockets Plug | B | Unshielded | Plastic | 300 VDC | Black | Crimp | Gold | Thermoplastic | 10 A | Copper Alloy | ||||||||||||||
Amphenol LTW | Free Hanging (In-Line) | Backshell Coupling Nut | Keyed | -40 °C | 105 ░C | IP67 - Dust Tight Waterproof | 4 | Polyamide (PA) Nylon Glass Filled | Female Sockets Plug | B | Unshielded | Plastic | Bayonet Lock | Black | Gold | Nylon Polyamide (PA) | 10 A | Copper Alloy | 4.5 mm 6.5 mm | 0.177 in 0.256 in | Glass Filled Nylon Polyamide (PA) | ||||||||||||
Amphenol LTW | Free Hanging (In-Line) | Backshell Strain Relief | Keyed | -40 °C | 105 ░C | IP68 - Dust Tight Waterproof | 4 | Polyamide (PA) Nylon Glass Filled | Female Sockets Plug | B | Unshielded | Plastic | Push-Pull | 300 VAC | Black | Crimp | Gold | 10 A | Copper Alloy | Glass Filled Nylon Polyamide (PA) | UL94 V-0 | 8 mm | 6 mm | 0.315 in | 0.236 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.27 | |
| 10 | $ 7.47 | |||
| 25 | $ 7.06 | |||
| 50 | $ 6.89 | |||
| 100 | $ 6.54 | |||
| 250 | $ 5.85 | |||
| 500 | $ 5.51 | |||
| 1000 | $ 4.82 | |||
Description
General part information
BB-04BFFA Series
4 (Power) Position Circular Connector Plug, Female Sockets Crimp
