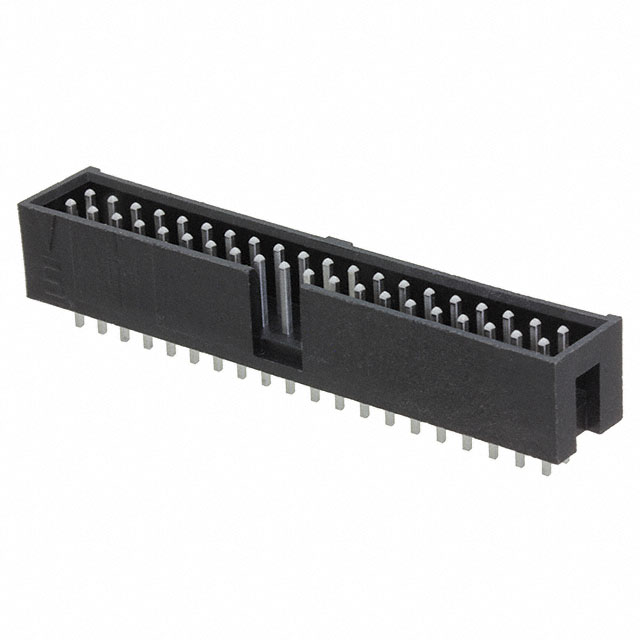

TSS-120-01-T-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

TSS-120-01-T-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

Description Specifications Series Pricing CAD Documents

Description

General part information

TSS-120 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	TSS-120-01-T-D

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.25 in
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.35 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.48 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

TSS-120 Series

Part	Pitch - Mating	Contact Length - Post	Number of Positions Loaded	Contact Material	Number of Positions	Contact Finish - Post	Material Flammability Rating	Connector Type	Contact Shape	Contact Length - Mating	Number of Rows	Contact Type	Mounting Type	Contact Finish - Mating	Fastening Type	Termination	Features	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Row Spacing - Mating	Overall Contact Length	Insulation Material	Shrouding	Style	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Current Rating
Samtec Inc. TSS-120-01-T-D	0.1 in	0.115 in	All	Phosphor Bronze	40	Tin	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Through Hole	Tin	Push-Pull	Solder	Keying Slot	Black	-55 °C	105 °C	0.35 in	0.1 in	0.48 in	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable
Samtec Inc. TSS-120-03-G-D-01	0.1 in	0.565 in		Phosphor Bronze	40	Gold	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.35 in	0.1 in	0.93 in	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable	39	10 µin	3 µin
Samtec Inc. TSS-120-02-L-S	0.1 in	0.165 in	All	Phosphor Bronze	20	Tin	UL94 V-0	Header	Square	0.25 in	1	Male Pin	Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.35 in		0.53 in	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable		10 µin
Samtec Inc. TSS-120-02-H-D	0.1 in	0.165 in	All	Phosphor Bronze	40	Gold	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.35 in	0.1 in	0.53 in	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable		30 µin	3 µin
Samtec Inc. TSS-120-04-F-D-RA-21	0.1 in	0.13 in		Phosphor Bronze	40	Tin	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Right Angle Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.365 in	0.1 in		Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable	39	3 µin
Samtec Inc. TSS-120-01-S-D-LL	0.1 in	0.115 in	All	Phosphor Bronze	40	Tin	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Through Hole	Gold	Push-Pull	Kinked Pin Solder	Keying Slot	Black	-55 °C	125 °C	0.35 in	0.1 in	0.48 in	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable		30 µin
Samtec Inc. TSS-120-05-F-D-RA	0.1 in	0.23 in	All	Phosphor Bronze	40	Tin	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Right Angle Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.365 in	0.1 in		Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable		3 µin
Samtec Inc. TSS-120-02-G-D	0.1 in	0.165 in	All	Phosphor Bronze	40	Gold	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.35 in	0.1 in	0.53 in	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable		10 µin	3 µin	3 A
Samtec Inc. TSS-120-01-S-S	0.1 in	0.115 in	All	Phosphor Bronze	20	Tin	UL94 V-0	Header	Square	0.25 in	1	Male Pin	Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.35 in		0.48 in	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable		30 µin		3 A
Samtec Inc. TSS-120-05-G-D-RA	0.1 in	0.23 in	All	Phosphor Bronze	40	Gold	UL94 V-0	Header	Square	0.25 in	2	Male Pin	Right Angle Through Hole	Gold	Push-Pull	Solder	Keying Slot	Black	-55 °C	125 °C	0.365 in	0.1 in		Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Board Board or Cable		10 µin	3 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TSS-120-01-T-D | Datasheet

.100" High-Temp Shrouded Terminal Strip, Cable Mate

TSS-105-05-L-D-RA Datasheet 02
