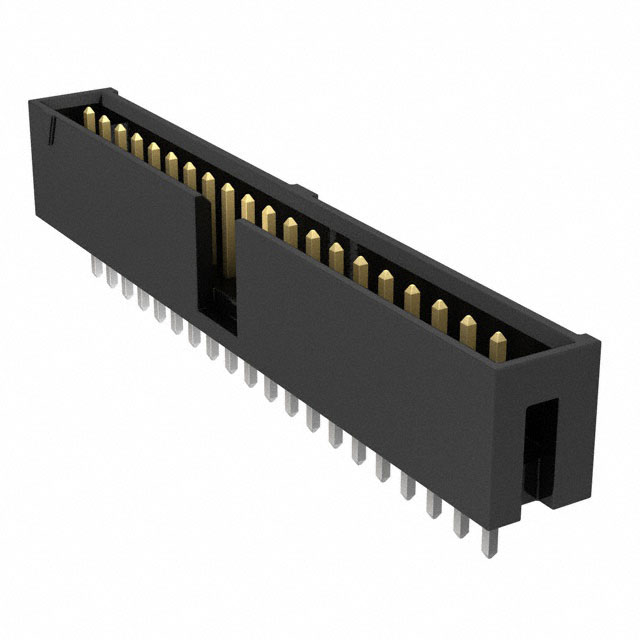

TSS-120-01-S-S

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSS/TST Double Row Footprint Datasheet

TSS-120-01-S-S

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsTSS/TST Double Row Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSS-120-01-S-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.48 in
Overall Contact Length	12.19 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

TSS-120 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Style	Insulation Color	Contact Length - Post	Contact Length - Post	Mounting Type	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Insulation Material	Number of Positions	Connector Type	Contact Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Features	Fastening Type	Contact Shape	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Current Rating (Amps)
Samtec Inc. TSS-120-01-T-D	2.54 mm	0.1 in	Solder	Board to Board Cable	Black	2.92 mm	0.115 in	Through Hole	UL94 V-0	0.35 in	8.89 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	40	Header	Male Pin	2	105 ░C	-55 °C	6.35 mm	0.25 in	Tin	Keying Slot	Push-Pull	Square	All	0.1 in	2.54 mm	0.48 in	12.19 mm	Phosphor Bronze
Samtec Inc. TSS-120-03-G-D-01	2.54 mm	0.1 in	Solder	Board to Board Cable	Black	14.35 mm	0.565 in	Through Hole	UL94 V-0	0.35 in	8.89 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	40	Header	Male Pin	2	125 °C	-55 °C	6.35 mm	0.25 in	Gold	Keying Slot	Push-Pull	Square		0.1 in	2.54 mm	0.93 in	23.62 mm	Phosphor Bronze	3 µin	0.076 µm	10 çin	0.25 çm	Gold	39
Samtec Inc. TSS-120-02-L-S			Solder	Board to Board Cable	Black			Through Hole	UL94 V-0	0.35 in	8.89 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	20	Header	Male Pin	1	125 °C	-55 °C	6.35 mm	0.25 in	Tin	Keying Slot	Push-Pull	Square	All	0.1 in	2.54 mm	0.53 in	13.46 mm	Phosphor Bronze			10 çin	0.25 çm	Gold		0.165 in	4.19 mm
Samtec Inc. TSS-120-02-H-D	2.54 mm	0.1 in	Solder	Board to Board Cable	Black			Through Hole	UL94 V-0	0.35 in	8.89 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	40	Header	Male Pin	2	125 °C	-55 °C	6.35 mm	0.25 in	Gold	Keying Slot	Push-Pull	Square	All	0.1 in	2.54 mm	0.53 in	13.46 mm	Phosphor Bronze	3 µin	0.076 µm	30 Áin	0.76 Ám	Gold		0.165 in	4.19 mm
Samtec Inc. TSS-120-04-F-D-RA-21	2.54 mm	0.1 in	Solder	Board to Board Cable	Black	3.3 mm	0.13 in	Through Hole Right Angle	UL94 V-0			Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	40	Header	Male Pin	2	125 °C	-55 °C	6.35 mm	0.25 in	Tin	Keying Slot	Push-Pull	Square		0.1 in	2.54 mm			Phosphor Bronze			3 µin	0.076 µm	Gold	39			0.365 in	9.27 mm
Samtec Inc. TSS-120-05-F-D-RA	2.54 mm	0.1 in	Solder	Board to Board Cable	Black	5.84 mm	0.23 in	Through Hole Right Angle	UL94 V-0			Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	40	Header	Male Pin	2	125 °C	-55 °C	6.35 mm	0.25 in	Tin	Keying Slot	Push-Pull	Square	All	0.1 in	2.54 mm			Phosphor Bronze			3 µin	0.076 µm	Gold				0.365 in	9.27 mm
Samtec Inc. TSS-120-01-S-S			Solder	Board to Board Cable	Black	2.92 mm	0.115 in	Through Hole	UL94 V-0	0.35 in	8.89 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	20	Header	Male Pin	1	125 °C	-55 °C	6.35 mm	0.25 in	Tin	Keying Slot	Push-Pull	Square	All	0.1 in	2.54 mm	0.48 in	12.19 mm	Phosphor Bronze			30 Áin	0.76 Ám	Gold						3 A
Samtec Inc. TSS-120-05-G-D-RA	2.54 mm	0.1 in	Solder	Board to Board Cable	Black	5.84 mm	0.23 in	Through Hole Right Angle	UL94 V-0			Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	40	Header	Male Pin	2	125 °C	-55 °C	6.35 mm	0.25 in	Gold	Keying Slot	Push-Pull	Square	All	0.1 in	2.54 mm			Phosphor Bronze	3 µin	0.076 µm	10 çin	0.25 çm	Gold				0.365 in	9.27 mm
Samtec Inc. TSS-120-03-S-D
Samtec Inc. TSS-120-01-G-S			Solder	Board to Board Cable	Black	2.92 mm	0.115 in	Through Hole	UL94 V-0	0.35 in	8.89 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	20	Header	Male Pin	1	125 °C	-55 °C	6.35 mm	0.25 in	Gold	Keying Slot	Push-Pull	Square	All	0.1 in	2.54 mm	0.48 in	12.19 mm	Phosphor Bronze	3 µin	0.076 µm	10 çin	0.25 çm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.29

Description

General part information

TSS-120 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources

TSS/TST Double Row Footprint

Datasheet
