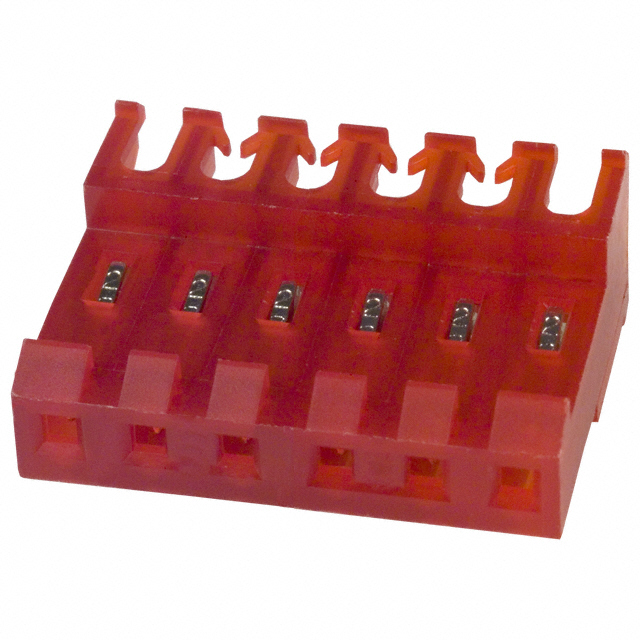

06P MTA156 CONN ASSY 22AWG LF

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Technical Data Sheet EN +7

3-640601-6

Active

TE Connectivity Raychem Cable Protection

06P MTA156 CONN ASSY 22AWG LF

Deep-Dive with AI

Documents3D Product Image EN Technical Data Sheet EN +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-640601-6

Cable Termination	IDC
Color	Red
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	80 Áin
Contact Finish Thickness	2.03 Ám
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	1
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Wire Gauge	22 AWG
Wire Type	Discrete or Ribbon Cable

MTA-156 Series

Headers & Wire Housings 06P MTA156 HDR ASSY W/O 2,3,5

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Contact Type	Pitch [x]	Pitch [x]	Features	Color	Fastening Type	Number of Rows	Cable Termination	Number of Positions	Wire Type	Connector Type	Wire Gauge	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Style	Contact Finish - Mating	Insulation Color	Termination	Number of Positions Loaded	Contact Shape	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity Raychem Cable Protection 3-640601-6	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm	Feed Through	Red	Locking Ramp	1	IDC	6	Discrete or Ribbon Cable	Receptacle	22 AWG
TE Connectivity Raychem Cable Protection 647125-4			Through Hole Right Angle		Male Pin					Friction Lock	1		4		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire	Tin-Lead	Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin-Lead	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 3-647125-1			Through Hole Right Angle		Male Pin					Friction Lock	1		11		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 2-647125-8			Through Hole Right Angle		Male Pin					Friction Lock	1		8		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 4-640601-0	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm	Feed Through	Red	Locking Ramp	1	IDC	10	Discrete or Ribbon Cable	Receptacle	22 AWG
TE Connectivity Raychem Cable Protection 4-643817-5	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm			Locking Ramp	1	IDC	15	Discrete or Ribbon Cable	Receptacle	18 AWG
TE Connectivity Raychem Cable Protection 3-647125-2			Through Hole Right Angle		Male Pin					Friction Lock	1		12		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 1-640385-9			Through Hole Right Angle		Male Pin						1		19		Header		Unshrouded	105 ░C	-55 °C	0.125 in	3.18 mm	Board to Cable/Wire		Natural	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial			0.39 in	9.91 mm
TE Connectivity Raychem Cable Protection 3-640601-8	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm	Feed Through	Red	Locking Ramp	1	IDC	8	Discrete or Ribbon Cable	Receptacle	22 AWG
TE Connectivity Raychem Cable Protection 2-647125-6			Through Hole Right Angle		Male Pin					Friction Lock	1		6		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
