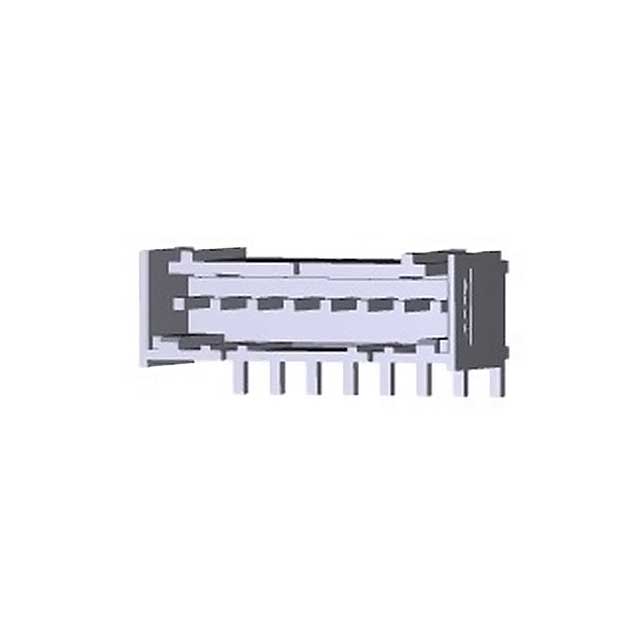

2-647125-8

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 8POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-647125-8

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 8POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-647125-8

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Mating	0.3 in
Contact Length - Mating	7.62 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	0.455 in
Insulation Height	11.56 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

MTA-156 Series

Headers & Wire Housings 06P MTA156 HDR ASSY W/O 2,3,5

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Contact Type	Pitch [x]	Pitch [x]	Features	Color	Fastening Type	Number of Rows	Cable Termination	Number of Positions	Wire Type	Connector Type	Wire Gauge	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Style	Contact Finish - Mating	Insulation Color	Termination	Number of Positions Loaded	Contact Shape	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity Raychem Cable Protection 3-640601-6	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm	Feed Through	Red	Locking Ramp	1	IDC	6	Discrete or Ribbon Cable	Receptacle	22 AWG
TE Connectivity Raychem Cable Protection 647125-4			Through Hole Right Angle		Male Pin					Friction Lock	1		4		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire	Tin-Lead	Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin-Lead	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 3-647125-1			Through Hole Right Angle		Male Pin					Friction Lock	1		11		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 2-647125-8			Through Hole Right Angle		Male Pin					Friction Lock	1		8		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 4-640601-0	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm	Feed Through	Red	Locking Ramp	1	IDC	10	Discrete or Ribbon Cable	Receptacle	22 AWG
TE Connectivity Raychem Cable Protection 4-643817-5	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm			Locking Ramp	1	IDC	15	Discrete or Ribbon Cable	Receptacle	18 AWG
TE Connectivity Raychem Cable Protection 3-647125-2			Through Hole Right Angle		Male Pin					Friction Lock	1		12		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám
TE Connectivity Raychem Cable Protection 1-640385-9			Through Hole Right Angle		Male Pin						1		19		Header		Unshrouded	105 ░C	-55 °C	0.125 in	3.18 mm	Board to Cable/Wire		Natural	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial			0.39 in	9.91 mm
TE Connectivity Raychem Cable Protection 3-640601-8	80 Áin	2.03 Ám	Free Hanging (In-Line)	Tin	Female Socket	0.156 in	3.96 mm	Feed Through	Red	Locking Ramp	1	IDC	8	Discrete or Ribbon Cable	Receptacle	22 AWG
TE Connectivity Raychem Cable Protection 2-647125-6			Through Hole Right Angle		Male Pin					Friction Lock	1		6		Header		Shrouded - 4 Wall	105 ░C	-55 °C	0.455 in	11.56 mm	Board to Cable/Wire		Black	Solder	All	Square	Varies by Wire Gauge	600 VAC	Copper Alloy	Tin	3.18 mm	0.125 in	UL94 V-0	0.156 in	3.96 mm	General Purpose Industrial	150 Áin	3.81 Ám	0.3 in	7.62 mm	150 Áin	3.81 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 3.04

Description

General part information

MTA-156 Series

Headers & Wire Housings 06P MTA156 HDR ASSY W/O 2,3,5
