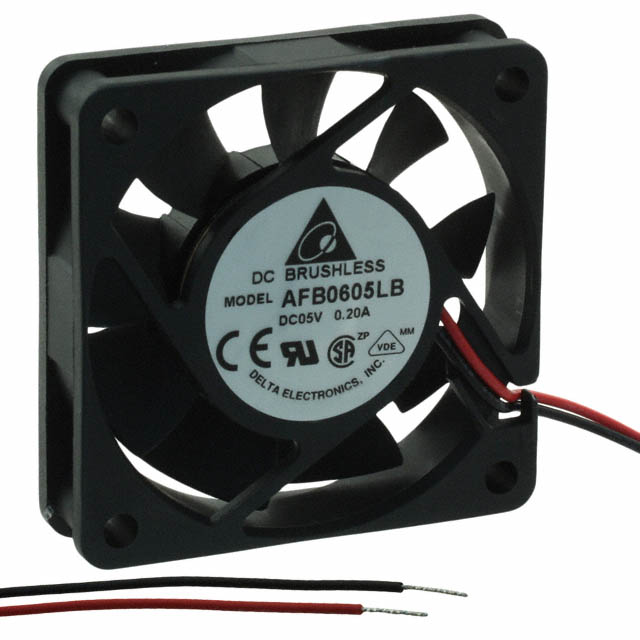

AFB0605LB

Obsolete

Delta Electronics

FAN AXIAL 60X15MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans VDE Cert +3

AFB0605LB

Obsolete

Delta Electronics

FAN AXIAL 60X15MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans VDE Cert +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0605 Series

Fan Tubeaxial 5VDC Square - 60mm L x 60mm H Ball 11.5 CFM (0.322m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Fans VDE Cert

AFB0605LB Spec

Datasheet

Fans, Blowers CSA Cert

Fans, Electric - Component UL Cert

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0605LB	AFB0605 Series

Air Flow	0.322 m³/min	0.322 - 0.594 m³/min
Air Flow	11.5 CFM	11.5 - 21.2 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.18 - 400 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	24 dB	20 - 35 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	0.65 W	0.65 - 2 W
RPM	3000 RPM	3000 - 4500 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	21.7 Pa	21.7 - 48.6 Pa
Static Pressure	0.087 in H2O	0.087 - 0.195 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	5 V	5 V
Voltage Range [Max]	6 VDC	5.5 - 6 V
Voltage Range [Min]	4 VDC	4 - 4.5 V
Weight	0.098 lb	0.074 - 0.098 lb
Weight	44.45 g	33.56 - 44.45 g
Width	-	13 mm
Width [x]	15 mm	15 mm

AFB0605 Series

FAN AXIAL 60X13MM BALL 5VDC WIRE

Part	Features	Weight	Weight	Approval Agency	Fan Type	Current Rating (Amps)	Termination	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Material - Frame	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Bearing Type	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Noise	Material - Blade	Voltage - Rated	Power (Watts)	Width [x]
Delta Electronics AFB0605HC-F00	Locked Rotor Protection, Speed Sensor (Tach)	0.074 lb	33.56 g	CE, CSA, UL, VDE	Tubeaxial	0.29 A	3 Wire Leads	60 mm	60 mm	0.163 in H2O	40.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	13 mm	Ball	4200 RPM	4.5 V	5.5 V	21.2 CFM	0.594 m³/min	31.5 dB	Plastic	5 V	1.45 W
Delta Electronics AFB0605HB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial		2 Wire Leads	60 mm	60 mm	0.155 in H2O	38.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	4000 RPM	4 VDC	6 VDC	15.4 CFM	0.431 m³/min	32 dB	Plastic	5 V	1.5 W	15 mm
Delta Electronics AFB0605MB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial	0.2 A	2 Wire Leads	60 mm	60 mm	0.119 in H2O	29.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	3500 RPM	4 VDC	6 VDC	13.4 CFM	0.375 mł/min	20 dB	Plastic	5 V		15 mm
Delta Electronics AFB0605MC		0.074 lb	33.56 g	CE, CSA, UL, VDE	Tubeaxial	0.18 A	2 Wire Leads	60 mm	60 mm	0.119 in H2O	29.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	13 mm	Ball	3600 RPM	4.5 V	5.5 V	18.2 CFM	0.51 m³/min	28 dB	Plastic	5 V	0.9 W
Delta Electronics AFB0605LB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial		2 Wire Leads	60 mm	60 mm	0.087 in H2O	21.7 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	3000 RPM	4 VDC	6 VDC	11.5 CFM	0.322 m³/min	24 dB	Plastic	5 V	0.65 W	15 mm
Delta Electronics AFB0605HHB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial	400 mA	2 Wire Leads	60 mm	60 mm	0.195 in H2O	48.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	4500 RPM	4 VDC	6 VDC	17.3 CFM	0.484 mł/min	35 dB	Plastic	5 V	2 W	15 mm
Delta Electronics AFB0605MC-F00	Locked Rotor Protection, Speed Sensor (Tach)	0.074 lb	33.56 g	CE, CSA, UL, VDE	Tubeaxial	0.18 A	3 Wire Leads	60 mm	60 mm	0.119 in H2O	29.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	13 mm	Ball	3600 RPM	4.5 V	5.5 V	18.2 CFM	0.51 m³/min	28 dB	Plastic	5 V	0.9 W
