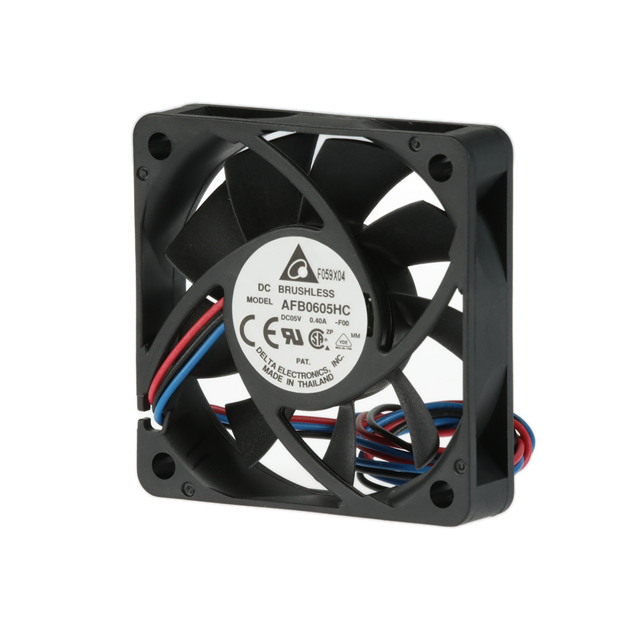

AFB0605HC-F00

Active

Delta Electronics

FAN AXIAL 60X13MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0605HC-F00

Active

Delta Electronics

FAN AXIAL 60X13MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.13
		10	$ 14.44
		25	$ 13.07
		50	$ 12.04
		100	$ 10.80
		270	$ 9.97
		540	$ 9.29

Description

General part information

AFB0605 Series

Fan Tubeaxial 5VDC Square - 60mm L x 60mm H Ball 21.2 CFM (0.594m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0605HC-F00	AFB0605 Series

Air Flow	21.2 CFM	11.5 - 21.2 CFM
Air Flow	0.594 m³/min	0.322 - 0.594 m³/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.29 A	0.18 - 400 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	31.5 dB	20 - 35 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.45 W	0.65 - 2 W
RPM	4200 RPM	3000 - 4500 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	0.163 in H2O	0.087 - 0.195 in H2O
Static Pressure	40.6 Pa	21.7 - 48.6 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	5 V	5 V
Voltage Range [Max]	5.5 V	5.5 - 6 V
Voltage Range [Min]	4.5 V	4 - 4.5 V
Weight	0.074 lb	0.074 - 0.098 lb
Weight	33.56 g	33.56 - 44.45 g
Width	-	15 mm
Width [y]	13 mm	13 mm

AFB0605 Series

FAN AXIAL 60X13MM BALL 5VDC WIRE

Part	Features	Weight	Weight	Approval Agency	Fan Type	Current Rating (Amps)	Termination	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Material - Frame	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Bearing Type	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Noise	Material - Blade	Voltage - Rated	Power (Watts)	Width [x]
Delta Electronics AFB0605HC-F00	Locked Rotor Protection, Speed Sensor (Tach)	0.074 lb	33.56 g	CE, CSA, UL, VDE	Tubeaxial	0.29 A	3 Wire Leads	60 mm	60 mm	0.163 in H2O	40.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	13 mm	Ball	4200 RPM	4.5 V	5.5 V	21.2 CFM	0.594 m³/min	31.5 dB	Plastic	5 V	1.45 W
Delta Electronics AFB0605HB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial		2 Wire Leads	60 mm	60 mm	0.155 in H2O	38.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	4000 RPM	4 VDC	6 VDC	15.4 CFM	0.431 m³/min	32 dB	Plastic	5 V	1.5 W	15 mm
Delta Electronics AFB0605MB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial	0.2 A	2 Wire Leads	60 mm	60 mm	0.119 in H2O	29.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	3500 RPM	4 VDC	6 VDC	13.4 CFM	0.375 mł/min	20 dB	Plastic	5 V		15 mm
Delta Electronics AFB0605MC		0.074 lb	33.56 g	CE, CSA, UL, VDE	Tubeaxial	0.18 A	2 Wire Leads	60 mm	60 mm	0.119 in H2O	29.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	13 mm	Ball	3600 RPM	4.5 V	5.5 V	18.2 CFM	0.51 m³/min	28 dB	Plastic	5 V	0.9 W
Delta Electronics AFB0605LB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial		2 Wire Leads	60 mm	60 mm	0.087 in H2O	21.7 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	3000 RPM	4 VDC	6 VDC	11.5 CFM	0.322 m³/min	24 dB	Plastic	5 V	0.65 W	15 mm
Delta Electronics AFB0605HHB		0.098 lb	44.45 g	CE, CSA, UL, VDE	Tubeaxial	400 mA	2 Wire Leads	60 mm	60 mm	0.195 in H2O	48.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C		Ball	4500 RPM	4 VDC	6 VDC	17.3 CFM	0.484 mł/min	35 dB	Plastic	5 V	2 W	15 mm
Delta Electronics AFB0605MC-F00	Locked Rotor Protection, Speed Sensor (Tach)	0.074 lb	33.56 g	CE, CSA, UL, VDE	Tubeaxial	0.18 A	3 Wire Leads	60 mm	60 mm	0.119 in H2O	29.6 Pa	Plastic	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	13 mm	Ball	3600 RPM	4.5 V	5.5 V	18.2 CFM	0.51 m³/min	28 dB	Plastic	5 V	0.9 W
