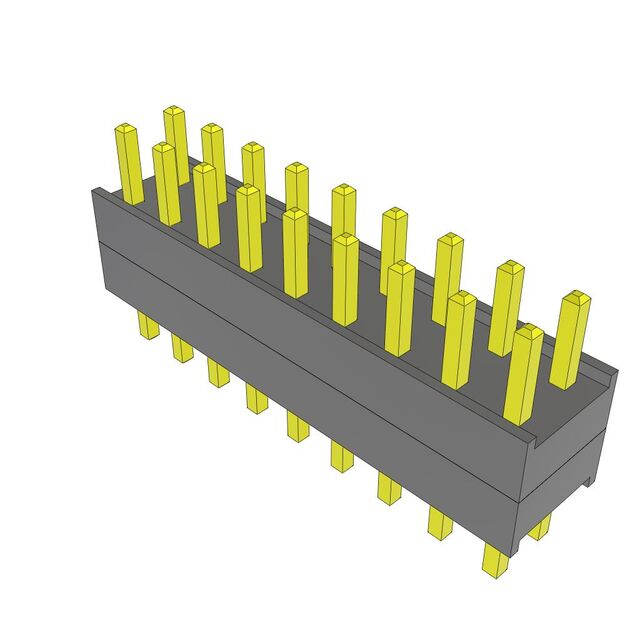

DW-09-07-F-D-200

Active

Samtec Inc.

CONN BOARD STACKER HDR 18 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BOARD STACKER HDR 18 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Specification	DW-09-07-F-D-200

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	3.048 mm
Length - Post (Mating) [x]	0.12 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	18
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Color	Number of Rows	Length - Tail [x]	Length - Tail [x]	Pitch [x]	Pitch [x]	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Positions	Contact Finish - Post (Mating)	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing
Samtec Inc. DW-09-07-T-S-210	Black	1	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	0.21 in	5.334 mm	10.922 mm	0.43 in	9	Tin	Through Hole	2.794 mm	0.11 in
Samtec Inc. DW-09-07-T-S-210-LL	Black	1	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	0.21 in	5.334 mm	10.922 mm	0.43 in	9	Tin	Through Hole	2.794 mm	0.11 in
Samtec Inc. DW-09-07-T-S-235	Black	1	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	0.235 in	5.969 mm	10.922 mm	0.43 in	9	Tin	Through Hole	2.159 mm	0.085 in
Samtec Inc. DW-09-07-G-S-200-LL	Black	1	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder			10.922 mm	0.43 in	9	Gold	Through Hole	3.048 mm	0.12 in	0.25 Ám	10 Áin
Samtec Inc. DW-09-07-G-S-210	Black	1	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder	0.21 in	5.334 mm	10.922 mm	0.43 in	9	Gold	Through Hole	2.794 mm	0.11 in	0.25 Ám	10 Áin
Samtec Inc. DW-09-07-F-D-200	Black	2	0.11 in	2.794 mm	2.54 mm	0.1 in	Solder			10.922 mm	0.43 in	18	Gold	Through Hole	3.048 mm	0.12 in	0.076 Ám	3 Áin	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.99

General part information

18 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
