Specification	BQ24250CYFFT

Battery Chemistry	Lithium Ion
Battery Pack Voltage	4.2 V
Charge Current - Max	2 A
Current - Charging	Constant, Programmable
Fault Protection	Over Voltage, Over Temperature
Interface	I2C
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	30-UFBGA, DSBGA
Package Name	30-DSBGA
Programmable Features	Current
Voltage - Supply (Max)	10.5 V

BQ24250 Series

1-cell, 2-A, I2C controlled buck battery charger with 1uA in SYSOFF mode

Part	Charge Current - Max	Package / Case	Voltage - Supply (Max)	Fault Protection	Battery Chemistry	Interface	Programmable Features	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Current - Charging	Number of Cells	Battery Pack Voltage	Package Name	Supplied Contents	Function	Type	Utilized IC / Part	Contents	Package Length	Package Width
Texas Instruments BQ24250YFFT	2 A	30-UFBGA DSBGA	10.5 V	Over Current Over Temperature Over Voltage	Lithium Ion	I2C	Current	Surface Mount	85 °C	-40 °C	Constant Programmable	1	4.2 V	30-DSBGA
Texas Instruments BQ24250YFFR	2 A	30-UFBGA DSBGA	10.5 V	Over Current Over Temperature Over Voltage	Lithium Ion	I2C	Current	Surface Mount	85 °C	-40 °C	Constant Programmable	1	4.2 V	30-DSBGA

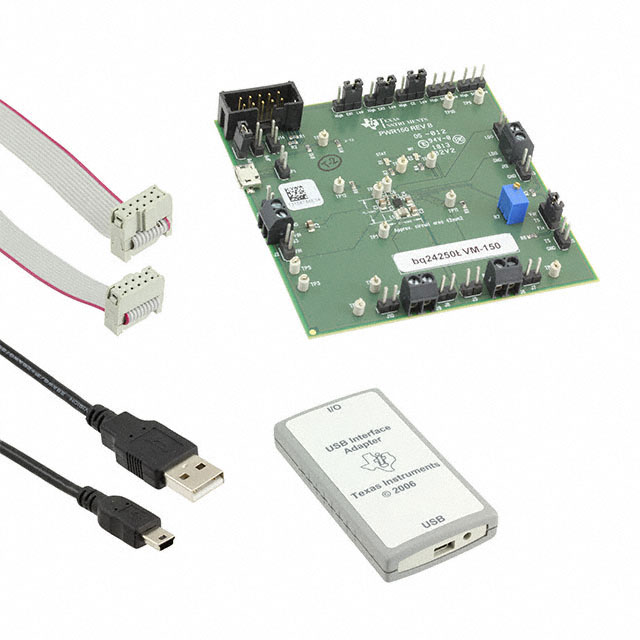

Texas Instruments BQ24250EVM-150															Board(s)	Battery Charger	Power Management	BQ24250	Board
Texas Instruments BQ24250CYFFT	2 A	30-UFBGA DSBGA	10.5 V	Over Temperature Over Voltage	Lithium Ion	I2C	Current	Surface Mount	85 °C	-40 °C	Constant Programmable	1	4.2 V	30-DSBGA
Texas Instruments BQ24250RGET	2 A	24-VFQFN Exposed Pad	10.5 V	Over Current Over Temperature Over Voltage	Lithium Ion	I2C	Current	Surface Mount	85 °C	-40 °C	Constant Programmable	1	4.2 V	24-VQFN						4 mm	4 mm
Texas Instruments BQ24250RGER	2 A	24-VFQFN Exposed Pad	10.5 V	Over Temperature Over Voltage	Lithium Ion	I2C	Current	Surface Mount	85 °C	-40 °C	Constant Programmable	1	4.2 V	24-VQFN						4 mm	4 mm
