TE Connectivity Raychem Cable Protection

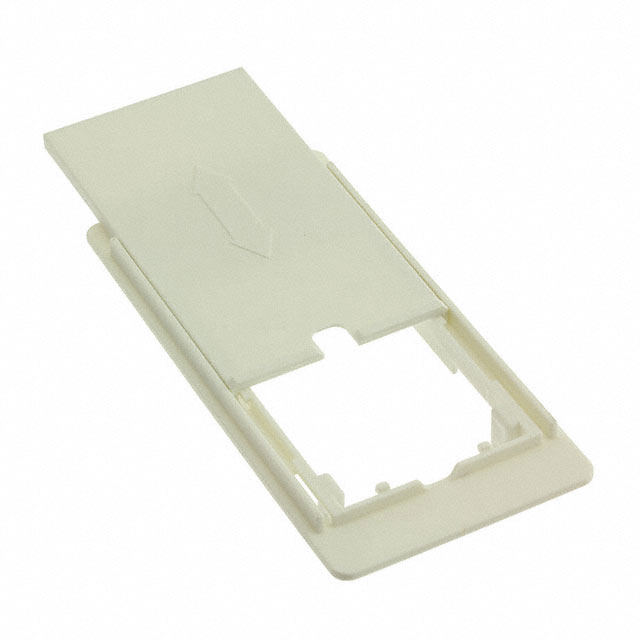

ASS'Y WALL OUTLET FRAME WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNECTOR_S_LINE_CONNECTOR_BROCHURE Datasheet

293286-1

Active

TE Connectivity Raychem Cable Protection

ASS'Y WALL OUTLET FRAME WHITE

Deep-Dive with AI

DocumentsNECTOR_S_LINE_CONNECTOR_BROCHURE Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	293286-1

Accessory Type	Wall Outlet Frame
Color	White

NECTOR S Series

Part	Housing Color	Termination	Features	Mounting Type	Connector Type	Number of Positions	Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Accessory Type	Color	Material	For Use With/Related Products	Specifications	Specifications	Current Rating (Amps)	Housing Material
TE Connectivity Raychem Cable Protection 293388-5	White	Crimp	Keying LV-2	Free Hanging (In-Line)	Plug Housing for Socket Contact	2	Cable/Wire to Cable/Wire or Board	-40 °C	120 °C	125 VDC
TE Connectivity Raychem Cable Protection 293286-1											Wall Outlet Frame	White
TE Connectivity Raychem Cable Protection 293270-3											Bus Bar	White	Polyamide (PA) Nylon	7.5mm Connector	2 Positions Feed Through Keying HV-1
TE Connectivity Raychem Cable Protection 293270-2											Bus Bar	White	Polyamide (PA) Nylon	7.5mm Connector	End Run Flange Keying HV-1	2 LED Light Fans
TE Connectivity Raychem Cable Protection 293286-2											Wall Outlet Frame	Gray
TE Connectivity Raychem Cable Protection 293270-4											Bus Bar	White	Polyamide (PA) Nylon	7.5mm Connector	End Run HV-1	2 LED Light Fans
TE Connectivity Raychem Cable Protection 293387-3	White	Crimp	Keying HV-5	Free Hanging (In-Line)	Outlet Housing for Pin Contact	2	Cable/Wire to Cable/Wire or Board	-40 °C	120 °C	125 VDC							6 A	Polybutylene Terephthalate (PBT) Glass Filled
TE Connectivity Raychem Cable Protection 293270-6											Bus Bar	Yellow	Polyamide (PA) Nylon	7.5mm Connector	2 Positions End Run Flange Keying LV-2
TE Connectivity Raychem Cable Protection 1740260-2											Tube	Black	Thermoplastic Elastomer (TPE)	7.5mm Connector	H03VVH2-F Cable
TE Connectivity Raychem Cable Protection 1740259-1	White	Crimp	Keying HV-1	Free Hanging (In-Line)	Plug Housing for Socket Contact	2	Cable/Wire to Cable/Wire or Board	-40 °C	120 °C	250 VDC							2.5 A	Polyamide (PA6) Nylon 6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	300	$ 1.70
Newark	Each	100	$ 2.31
		500	$ 1.89
		1000	$ 1.73
		2500	$ 1.55

Description

General part information

NECTOR S Series

Wall Outlet Assembly, NECTOR S, Plug & Socket Lighting Connector Accessories

Documents

Technical documentation and resources

NECTOR_S_LINE_CONNECTOR_BROCHURE

Datasheets & Catalog Pages

Datasheet

Digital Datasheet
