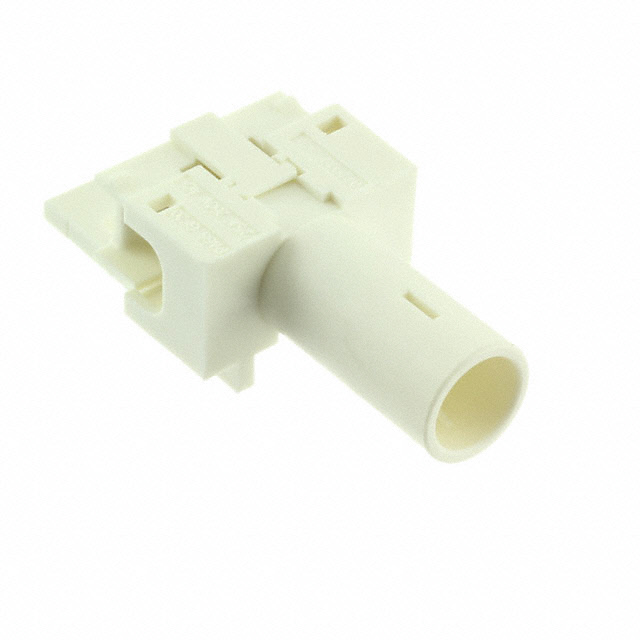

293270-2

Active

TE Connectivity Raychem Cable Protection

CONN BUS BAR FOR 7.5MM CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

293270-2

Active

TE Connectivity Raychem Cable Protection

CONN BUS BAR FOR 7.5MM CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	293270-2

Accessory Type	Bus Bar
Color	White
For Use With/Related Products	7.5mm Connector
Material	Polyamide (PA), Nylon
Specifications	Keying HV-1, End Run, Flange
Specifications	2 LED Light Fans

NECTOR S Series

Part	Housing Color	Termination	Features	Mounting Type	Connector Type	Number of Positions	Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Accessory Type	Color	Material	For Use With/Related Products	Specifications	Specifications	Current Rating (Amps)	Housing Material
TE Connectivity Raychem Cable Protection 293388-5	White	Crimp	Keying LV-2	Free Hanging (In-Line)	Plug Housing for Socket Contact	2	Cable/Wire to Cable/Wire or Board	-40 °C	120 °C	125 VDC
TE Connectivity Raychem Cable Protection 293286-1											Wall Outlet Frame	White
TE Connectivity Raychem Cable Protection 293270-3											Bus Bar	White	Polyamide (PA) Nylon	7.5mm Connector	2 Positions Feed Through Keying HV-1
TE Connectivity Raychem Cable Protection 293270-2											Bus Bar	White	Polyamide (PA) Nylon	7.5mm Connector	End Run Flange Keying HV-1	2 LED Light Fans
TE Connectivity Raychem Cable Protection 293286-2											Wall Outlet Frame	Gray
TE Connectivity Raychem Cable Protection 293270-4											Bus Bar	White	Polyamide (PA) Nylon	7.5mm Connector	End Run HV-1	2 LED Light Fans
TE Connectivity Raychem Cable Protection 293387-3	White	Crimp	Keying HV-5	Free Hanging (In-Line)	Outlet Housing for Pin Contact	2	Cable/Wire to Cable/Wire or Board	-40 °C	120 °C	125 VDC							6 A	Polybutylene Terephthalate (PBT) Glass Filled
TE Connectivity Raychem Cable Protection 293270-6											Bus Bar	Yellow	Polyamide (PA) Nylon	7.5mm Connector	2 Positions End Run Flange Keying LV-2
TE Connectivity Raychem Cable Protection 1740260-2											Tube	Black	Thermoplastic Elastomer (TPE)	7.5mm Connector	H03VVH2-F Cable
TE Connectivity Raychem Cable Protection 1740259-1	White	Crimp	Keying HV-1	Free Hanging (In-Line)	Plug Housing for Socket Contact	2	Cable/Wire to Cable/Wire or Board	-40 °C	120 °C	250 VDC							2.5 A	Polyamide (PA6) Nylon 6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	960	$ 1.94

Description

General part information

NECTOR S Series

Connector Bus Bar For 7.5mm Connector

Documents

Technical documentation and resources
