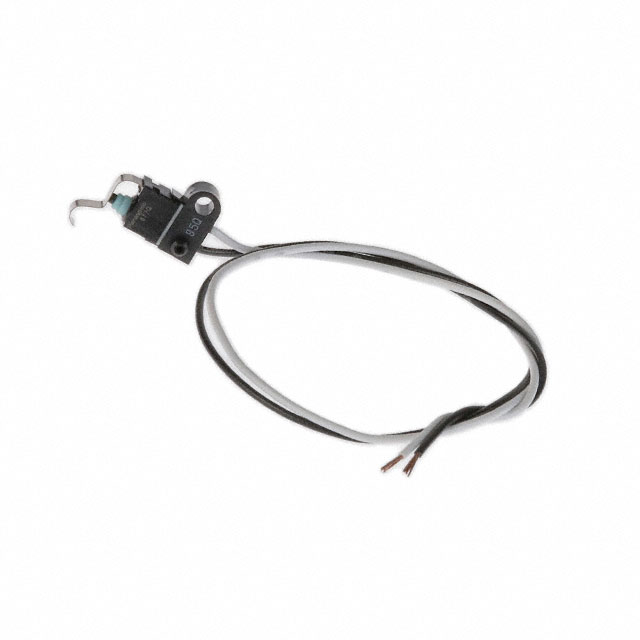

ASQM11638
ActivePanasonic Electric Works
SWITCH SNP ACT SPST-NO 0.05A 16V
Deep-Dive with AI
Search across all available documentation for this part.
ASQM11638
ActivePanasonic Electric Works
SWITCH SNP ACT SPST-NO 0.05A 16V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASQM11638 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPST-NO |
| Current Rating (Amps) | 50 mA |
| Electrical Life | 150000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 153 gf |
| Operating Position | 17.4 mm |
| Operating Position | 0.685 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.081 in |
| Overtravel | 2.05 mm |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - DC | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.65 | |
| 10 | $ 3.85 | |||
| 25 | $ 3.58 | |||
| 50 | $ 3.38 | |||
| 100 | $ 3.19 | |||
| 250 | $ 2.96 | |||
| 500 | $ 2.80 | |||
| 1000 | $ 2.65 | |||
Description
General part information
ASQM11 Series
Switch SPST-NO Chassis Mount
Documents
Technical documentation and resources
No documents available
