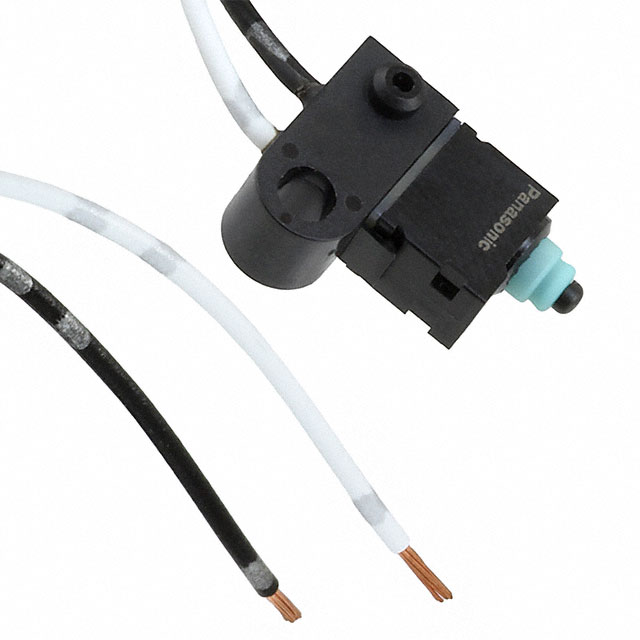

ASQM11630
ActivePanasonic Electric Works
SWITCH SNP ACT SPST-NO 0.05A 16V
Deep-Dive with AI
Search across all available documentation for this part.
ASQM11630
ActivePanasonic Electric Works
SWITCH SNP ACT SPST-NO 0.05A 16V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASQM11630 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 50 mA |
| Electrical Life | 150000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 122 gf |
| Operating Position | 0.541 in |
| Operating Position | 13.75 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.6 mm |
| Overtravel | 0.062 in |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - DC | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.67 | |
| 10 | $ 3.04 | |||
| 25 | $ 2.82 | |||
| 50 | $ 2.67 | |||
| 100 | $ 2.52 | |||
| 250 | $ 2.34 | |||
| 500 | $ 2.21 | |||
| 1000 | $ 2.09 | |||
Description
General part information
ASQM11 Series
Switch SPST-NO Chassis Mount
