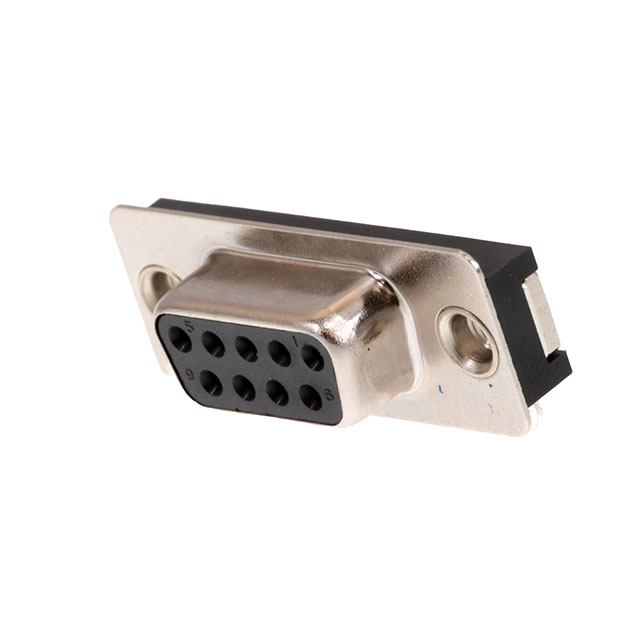

Specification	190-009-213L539

Color	Black
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Brass
Contact Type	Signal
Current Rating	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	1
Termination	Solder
Voltage Rating	250 V

190-009 Series

Part	Material Flammability Rating	Flange Feature	Mounting Type	Contact Type	Number of Positions	Connector Type	Connector Style	Termination	Features	Contact Finish	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Current Rating	Shell Material, Finish	Number of Rows	Shell Size	Connector Layout	Color	Dielectric Material	Contact Material	Voltage Rating	Shell Material	Finish	Operating Temperature (Min)	Operating Temperature (Max)
NorComp Inc. 190-009-162-001	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Surface Mount	Signal	9	Male Pins Plug	D-Sub	Solder	Board Guide Board Lock Grounding Indents Shielded	Gold	0	Flash	Flash	5 A	Steel	2	1	DE E	Black	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	300 VAC/DC
NorComp Inc. 190-009-262-001	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Surface Mount	Signal	9	Female Sockets Receptacle	D-Sub	Solder	Board Guide Board Lock	Gold	0	Flash	Flash	5 A	Steel	2	1	DE E	Black	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	300 VAC/DC
NorComp Inc. 190-009-163R001	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Surface Mount	Signal	9	Male Pins Plug	D-Sub	Solder	Board Guide Board Lock Grounding Indents Shielded	Gold	0	Flash	Flash	5 A		2	1	DE E	Black	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	300 VAC/DC	Steel	Nickel Plated	-55 °C	105 °C
NorComp Inc. 190-009-213L539	UL94 V-0	Housing Shell (4-40)	Panel Mount Right Angle Through Hole	Signal	9	Female Sockets Receptacle	D-Sub	Solder	Board Lock	Gold	30 µin			3 A		2	1	DE E	Black	Polybutylene Terephthalate (PBT)	Brass	250 V	Steel	Nickel Plated	-55 °C	85 °C
NorComp Inc. 190-009-113L009	UL94 V-0	Housing Shell (Unthreaded)	Panel Mount Right Angle Through Hole	Signal	9	Male Pins Plug	D-Sub	Solder	Board Lock Grounding Indents	Gold	30 µin			3 A		2	1	DE E	Black	Polybutylene Terephthalate (PBT)	Brass	250 V	Steel	Nickel Plated	-55 °C	85 °C
NorComp Inc. 190-009-263R001	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Surface Mount	Signal	9	Female Sockets Receptacle	D-Sub	Solder	Board Guide Board Lock Shielded	Gold	0	Flash	Flash	5 A		2	1	DE E	Black	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	300 VAC/DC	Steel	Nickel Plated	-55 °C	105 °C
NorComp Inc. 190-009-113L567	UL94 V-0	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Signal	9	Male Pins Plug	D-Sub	Solder	Board Lock Grounding Indents	Gold	0	Flash	Flash	3 A		2	1	DE E	Black	Polybutylene Terephthalate (PBT)	Brass	250 V	Steel	Nickel Plated	-55 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

190-009-213L539 | Datasheet

3D Product Image EN

White Papers EN
