190-009-113L567

Active

MH Connectors

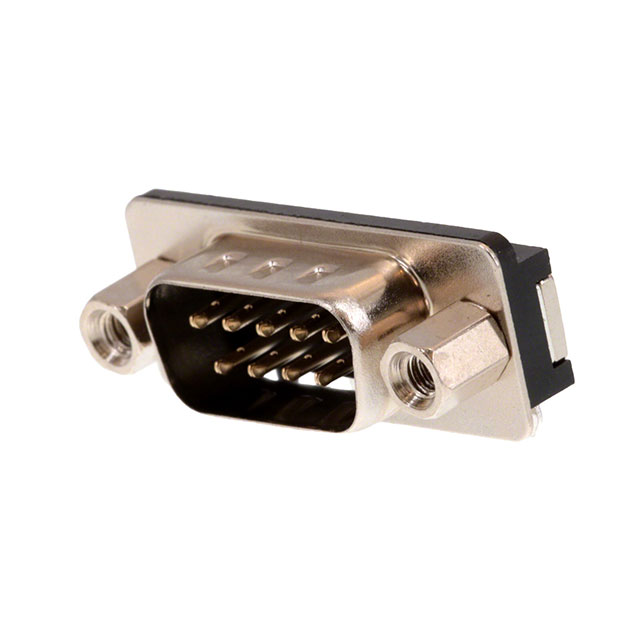

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, 190 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet White Papers EN +1

190-009-113L567

Active

MH Connectors

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, 190 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheet White Papers EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	190-009-113L567

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

190-009 Series

Part	Connector Type	Current Rating (Amps)	Material Flammability Rating	Mounting Type	Dielectric Material	Contact Finish	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Flange Feature	Contact Type	Contact Finish Thickness	Number of Rows	Shell Material, Finish	Contact Material	Features	Connector Style	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness
MH Connectors 190-009-162-001	Male Pins Plug	5 A	UL94 V-0	Board Edge Right Angle Surface Mount	Polyamide (PA6T) Nylon 6T	Gold	Solder	DE E	1	300 VDC	Housing/Shell (4-40)	Signal	Flash	2	Steel	Phosphor Bronze	Board Guide Board Lock Grounding Indents Shielded	D-Sub	9	Black
MH Connectors 190-009-262-001	Receptacle Female Sockets	5 A	UL94 V-0	Board Edge Right Angle Surface Mount	Polyamide (PA6T) Nylon 6T	Gold	Solder	DE E	1	300 VDC	Housing/Shell (4-40)	Signal	Flash	2	Steel	Phosphor Bronze	Board Guide Board Lock	D-Sub	9	Black
MH Connectors 190-009-163R001	Male Pins Plug	5 A	UL94 V-0	Board Edge Right Angle Surface Mount	Polyamide (PA6T) Nylon 6T	Gold	Solder	DE E	1	300 VDC	Housing/Shell (4-40)	Signal	Flash	2	Nickel Plated Steel	Phosphor Bronze	Board Guide Board Lock Grounding Indents Shielded	D-Sub	9	Black	105 ░C	-55 °C
MH Connectors 190-009-213L539	Receptacle Female Sockets	3 A	UL94 V-0	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Gold	Solder	DE E	1	250 VDC	Housing/Shell (4-40)	Signal		2	Nickel Plated Steel	Brass		D-Sub	9	Black	85 °C	-55 °C	0.76 Ám	30 Áin
MH Connectors 190-009-113L009	Male Pins Plug	3 A	UL94 V-0	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Gold	Solder	DE E	1	250 VDC	Housing/Shell (Unthreaded)	Signal		2	Nickel Plated Steel	Brass	Board Lock Grounding Indents	D-Sub	9	Black	85 °C	-55 °C	0.76 Ám	30 Áin
MH Connectors 190-009-263R001	Receptacle Female Sockets	5 A	UL94 V-0	Board Edge Right Angle Surface Mount	Polyamide (PA6T) Nylon 6T	Gold	Solder	DE E	1	300 VDC	Housing/Shell (4-40)	Signal	Flash	2	Nickel Plated Steel	Phosphor Bronze	Board Guide Board Lock Shielded	D-Sub	9	Black	105 ░C	-55 °C
MH Connectors 190-009-113L567	Male Pins Plug	3 A	UL94 V-0	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Gold	Solder	DE E	1	250 VDC	Female Screwlock (4-40) Mating Side	Signal	Flash	2	Nickel Plated Steel	Brass	Board Lock Grounding Indents	D-Sub	9	Black	85 °C	-55 °C
