1581-9

Active

Pomona Electronics

BANANA JACK, PANEL MOUNT, TIN-PLATED, WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

1581-9

Active

Pomona Electronics

BANANA JACK, PANEL MOUNT, TIN-PLATED, WHITE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1581-9

Body Material	Polycarbonate (PC)
Color	White
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Mating End Insulated
Operating Temperature	115 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Turret
Type	Banana Jack

1581 Series

Part	Contact Finish	Type	Termination	Contact Material	Gender	Plug/Mating Plug Diameter	Operating Temperature	Body Material	Insulation	Color
Pomona Electronics 1581-1	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Brown
Pomona Electronics 1581-8	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Gray
Pomona Electronics 1581-5#	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Green
Pomona Electronics 1581-9	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	White
Pomona Electronics 1581-3	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated
Pomona Electronics 1581-0	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Black
Pomona Electronics 1581-5	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Green
Pomona Electronics 1581-6#	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Blue
Pomona Electronics 1581-6	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Blue
Pomona Electronics 1581-2	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.56
		25	$ 2.46
Newark	Pack of 10	1	$ 26.96
		5	$ 24.94
		10	$ 24.07
		25	$ 23.20
		50	$ 22.33
		100	$ 21.75

Description

General part information

1581 Series

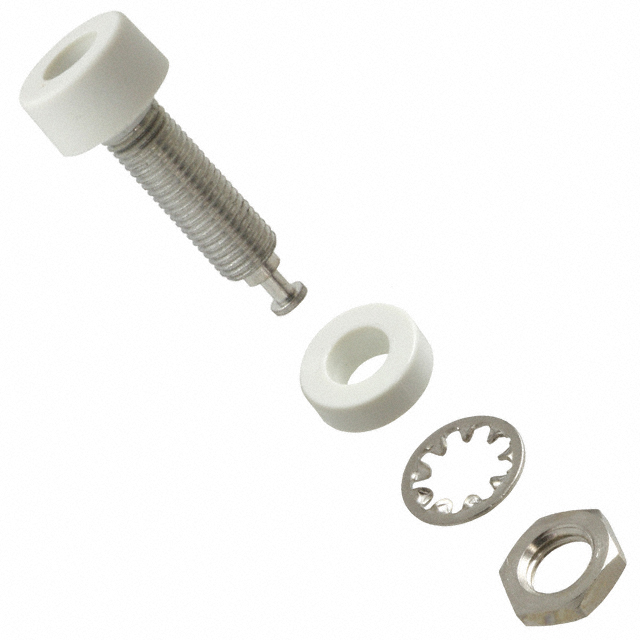

The 1581-9 is a Panel Mount Banana Jack in white. The connector insulation is polycarbonate for strength and durability. Comes kitted with a color matching insulator, and hardware that includes a lockwasher and hex nut.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
