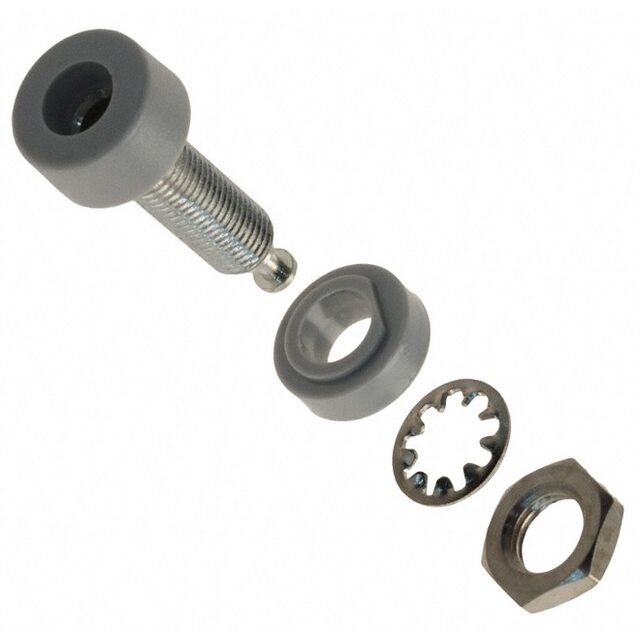

1581-8

Active

Pomona Electronics

CONN BANANA JACK TURRET GRAY

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BANANA JACK TURRET GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Type	Termination	Contact Material	Gender	Plug/Mating Plug Diameter	Operating Temperature	Body Material	Insulation	Color
Pomona Electronics 1581-1	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Brown
Pomona Electronics 1581-8	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Gray
Pomona Electronics 1581-5#	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Green
Pomona Electronics 1581-9	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	White
Pomona Electronics 1581-3	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated
Pomona Electronics 1581-0	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Black
Pomona Electronics 1581-5	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Green
Pomona Electronics 1581-6#	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Blue
Pomona Electronics 1581-6	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Blue
Pomona Electronics 1581-2	Tin	Banana Jack	Turret	Brass	Female	Standard Banana	115 °C	Polycarbonate (PC)	Mating End Insulated	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Banana Jack Connector Standard Banana Turret Gray
