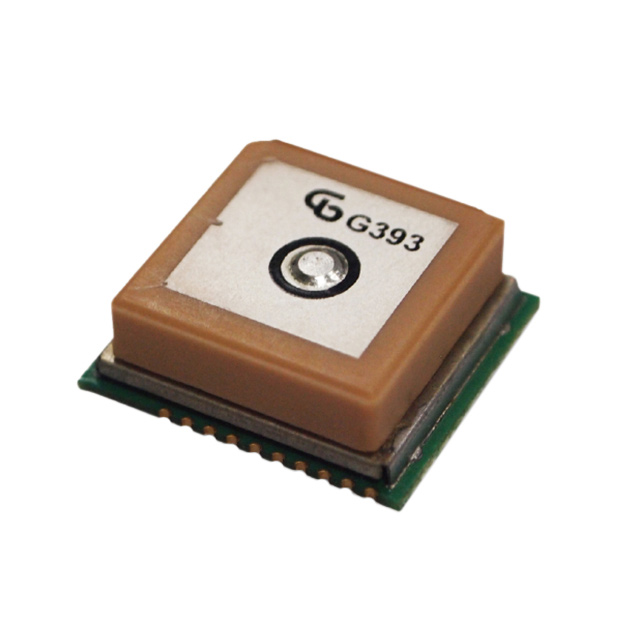

A2235HB04

Obsolete

Lantronix, Inc.

EVAL BOARD GPS SIRFSTARIV

Search across all available documentation for this part.

Obsolete

Lantronix, Inc.

EVAL BOARD GPS SIRFSTARIV

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A2235HB04	A2235 Series

Antenna Connector	-	On-Board, Patch
Applications	-	General Purpose
Current - Receiving	-	56 mA
Data Interface	-	SPI
For Use With/Related Products	A2235-H	A2235-H
Frequency	1.575 GHz	1.575 GHz
Modulation or Protocol	-	GPS
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Sensitivity	-	-163 dBm
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	Module
Type	GPS	GPS
Voltage - Supply	-	3.3 V

RF RCVR GPS 1.575GHZ MODULE

Part	Current - Receiving	Modulation or Protocol	Frequency	Voltage - Supply	Applications	Package / Case	Antenna Connector	Mounting Type	Data Interface	Sensitivity	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplied Contents	For Use With/Related Products
Lantronix, Inc. A2235H	56 mA	GPS	1.575 GHz	3.3 V	General Purpose	Module	On-Board, Patch	Surface Mount	SPI	-163 dBm	Module	85 °C	-40 °C
Lantronix, Inc. A2235HB04			1.575 GHz											GPS	Board(s)	A2235-H

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 184.74

General part information

SiRFstarIV™ A2235-H GPS 1.575GHz Evaluation Board

Technical documentation and resources
