IRF6795MTRPBF

Obsolete

Infineon Technologies

STRONGIRFET™ N-CHANNEL POWER MOSFET ; DIRECTFET™ M PACKAGE; 1.8 MOHM; SCHOTTKY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIR Part Numbering System Datasheet

IRF6795MTRPBF

Obsolete

Infineon Technologies

STRONGIRFET™ N-CHANNEL POWER MOSFET ; DIRECTFET™ M PACKAGE; 1.8 MOHM; SCHOTTKY

Deep-Dive with AI

DocumentsIR Part Numbering System Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRF6795MTRPBF

Current - Continuous Drain (Id) @ 25°C	160 A, 32 A
Drain to Source Voltage (Vdss)	25 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	53 nC
Input Capacitance (Ciss) (Max) @ Vds	4280 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C

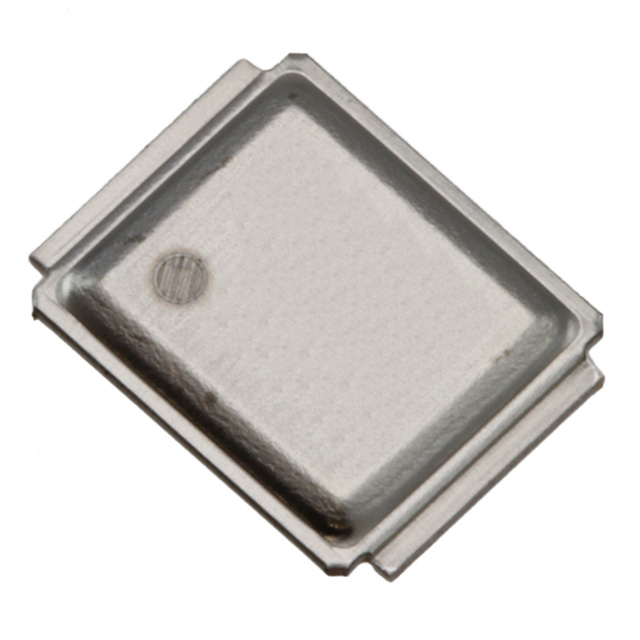

Package / Case	DirectFET™ Isometric MX
Power Dissipation (Max)	75 W, 2.8 W
Rds On (Max) @ Id, Vgs	1.8 mOhm
Supplier Device Package	DIRECTFET™ MX
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.35 V

IRF6795 Series

Part	Supplier Device Package	Package / Case	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Drain to Source Voltage (Vdss)	Power Dissipation (Max)
Infineon Technologies IRF6795MTRPBF	DIRECTFET™ MX	DirectFET™ Isometric MX	2.35 V	4280 pF	1.8 mOhm	53 nC	4.5 V 10 V	N-Channel	20 V	32 A 160 A	Surface Mount	150 °C	-40 °C	MOSFET (Metal Oxide)	25 V	2.8 W 75 W
Infineon Technologies IRF6795MTRPBF	DIRECTFET™ MX	DirectFET™ Isometric MX	2.35 V	4280 pF	1.8 mOhm	53 nC	4.5 V 10 V	N-Channel	20 V	32 A 160 A	Surface Mount	150 °C	-40 °C	MOSFET (Metal Oxide)	25 V	2.8 W 75 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	268	$ 1.12
		268	$ 1.12
	Cut Tape (CT)	1	$ 3.16
		1	$ 3.16
		10	$ 2.05
		10	$ 2.05
		100	$ 1.42
		100	$ 1.42
		500	$ 1.15
		500	$ 1.15

Description

General part information

IRF6795 Series

The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
