Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ2083EVM-001 | BQ2083 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Contents | Board(s) | Board(s) |
| Function | Battery Gauge | Battery Monitor, Battery Gauge |
| Interface | - | SMBus |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -20 °C |
| Operating Temperature | - | 85 °C |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 38-TFSOP |
| Package / Case | - | 0.173 in |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 38-TSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ2083 | BQ2083 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ2083 Series
SBS-COMPLIANT GAS GAUGE FOR USE WITH BQ29311
| Part | Battery Chemistry | Function | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Supplier Device Package | Package / Case | Package / Case | Package / Case | Mounting Type | Utilized IC / Part | Contents | Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ2083DBTR-V1P3 | Lithium Ion/Polymer | Battery Monitor | -20 °C | 85 °C | SMBus | 38-TSSOP | 4.4 mm | 38-TFSOP | 0.173 in | Surface Mount | ||||
Texas Instruments BQ2083DBTR-V1P2 | Lithium Ion/Polymer | Battery Monitor | -20 °C | 85 °C | SMBus | 38-TSSOP | 4.4 mm | 38-TFSOP | 0.173 in | Surface Mount | ||||
Texas Instruments BQ2083DBTG4 | Lithium Ion/Polymer | Battery Monitor | -20 °C | 85 °C | SMBus | 38-TSSOP | 4.4 mm | 38-TFSOP | 0.173 in | Surface Mount | ||||
Texas Instruments BQ2083EVM-001 | Battery Gauge | BQ2083 | Board(s) | Power Management | Board(s) | |||||||||
Texas Instruments BQ2083DBT | Lithium Ion/Polymer | Battery Monitor | -20 °C | 85 °C | SMBus | 38-TSSOP | 4.4 mm | 38-TFSOP | 0.173 in | Surface Mount |
Description
General part information
BQ2083 Series

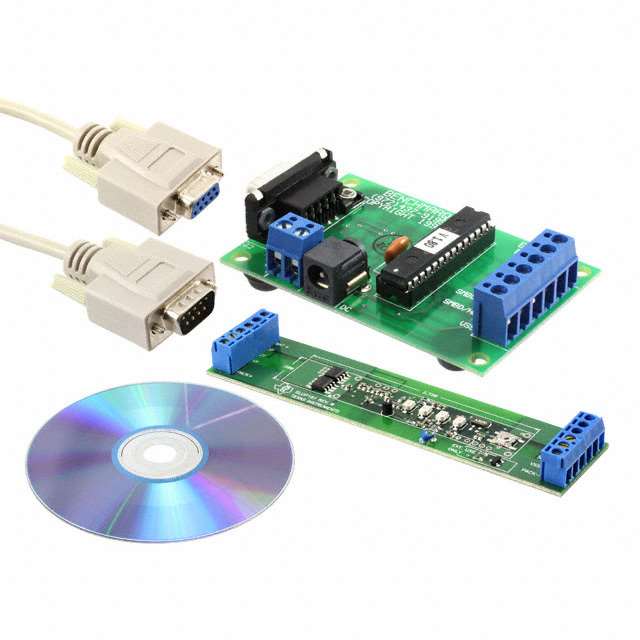

BQ2083 Battery Gauge Power Management Evaluation Board
