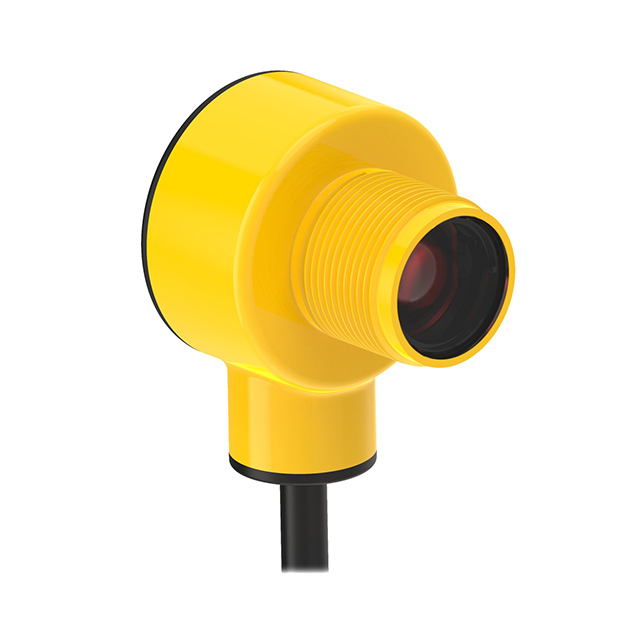

T18-2NAEL-2M

Active

BANNER ENGINEERING

PHOTO SEN EMITTER 25M

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN EMITTER 25M

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Connection Method	Sensing Method	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Cable Length	Cable Length
BANNER ENGINEERING T18-2NAES-2M	Red LED	Cable	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K	78.74 in	2 m
BANNER ENGINEERING T18-2NAEL-2M	Red LED	Cable	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K	78.74 in	2 m
BANNER ENGINEERING T18-2NAEJ-2M	Red LED	Cable	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K	78.74 in	2 m
BANNER ENGINEERING T18-2NAEL-Q8	Red LED	Connector	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 55.00
Newark	Each	1	$ 55.00

General part information

Through-Beam Optical Sensor 82.02' (25m) Light-On/Dark-On
