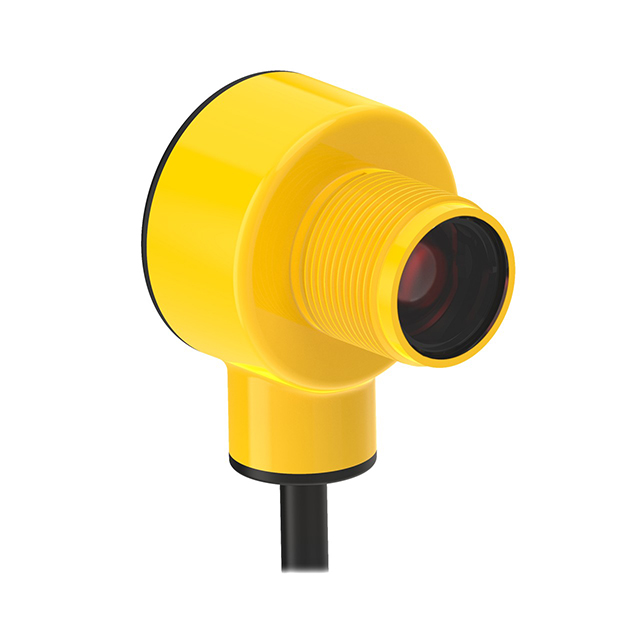

T18-2NAEJ-2M

Active

BANNER ENGINEERING

T18-2 SERIES: EMITTER WITH BEAM INHIBIT INPUT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

T18-2 SERIES: EMITTER WITH BEAM INHIBIT INPUT

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Connection Method	Sensing Method	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Cable Length	Cable Length
BANNER ENGINEERING T18-2NAES-2M	Red LED	Cable	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K	78.74 in	2 m
BANNER ENGINEERING T18-2NAEL-2M	Red LED	Cable	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K	78.74 in	2 m
BANNER ENGINEERING T18-2NAEJ-2M	Red LED	Cable	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K	78.74 in	2 m
BANNER ENGINEERING T18-2NAEL-Q8	Red LED	Connector	Through-Beam	82.02 ft	25 m	-40 °C	70 °C	Light-On/Dark-On	30 VDC	10 VDC	IEC IP67 IEC IP68 IEC IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 71.00
Newark	Each	1	$ 71.00

General part information

Through-Beam Optical Sensor 82.02' (25m) Light-On/Dark-On

Technical documentation and resources
