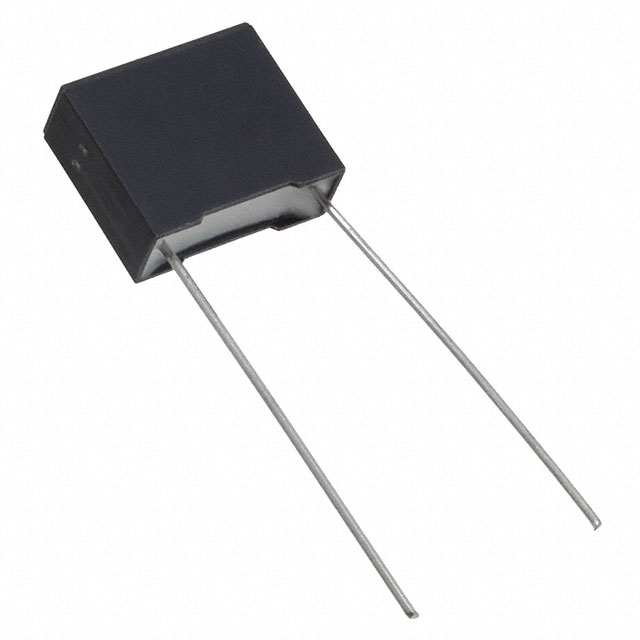

R46KF233040H1M

Active

KEMET

CAP FILM 0.033UF 20% 560VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR46KF233040H1M KEM_F3006_R46_X2_275_125C.pdf +4

R46KF233040H1M

Active

KEMET

CAP FILM 0.033UF 20% 560VDC RAD

Deep-Dive with AI

DocumentsR46KF233040H1M KEM_F3006_R46_X2_275_125C.pdf +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R46KF233040H1M

Applications	EMI, RFI Suppression
Capacitance	0.033 çF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.437 in
Height - Seated (Max) [Max]	11.1 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	0.512 in
Size / Dimension [x]	13 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

R46KF Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ratings	Applications	Dielectric Material	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Voltage Rating - AC	Voltage Rating - DC	Tolerance	Lead Spacing	Lead Spacing	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET R46KF268040M1K	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial	12.1 mm	0.476 "	0.068 µF	275 V	560 V	10 %	0.394 in	10 mm	PC Pins
KEMET R46KF315000P0M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial	12.1 mm	0.476 "	0.15 ÁF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins
KEMET R46KF310000P1M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			100000 pF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm
KEMET R46KF233000M1M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			0.033 çF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm
KEMET R46KF233040H1M	-40 °C	125 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			0.033 çF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm
KEMET R46KF215000N0M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			15000 pF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins			0.512 in	0.157 in	13 mm	4 mm
KEMET R46KF247040P0M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial				275 V	560 V	20 %	0.394 in	10 mm	PC Pins			0.512 in	0.157 in	13 mm	4 mm
KEMET R46KF210050N0K	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			10000 pF	275 V	560 V	10 %	0.394 in	10 mm	PC Pins			0.512 in	0.157 in	13 mm	4 mm
KEMET R46KF247040H1M	-40 °C	125 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial	12.1 mm	0.476 "		275 V	560 V	20 %	0.394 in	10 mm	PC Pins
KEMET R46KF247050N0K	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial				275 V	560 V	10 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.81
		10	$ 0.57
		50	$ 0.48
		100	$ 0.39
		500	$ 0.32
		1500	$ 0.27
		3000	$ 0.26
		6000	$ 0.24
Newark	Each	10	$ 0.50
		25	$ 0.47
		50	$ 0.44
		100	$ 0.41
		500	$ 0.34
		1000	$ 0.28
		2500	$ 0.25

Description

General part information

R46KF Series

0.033 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
