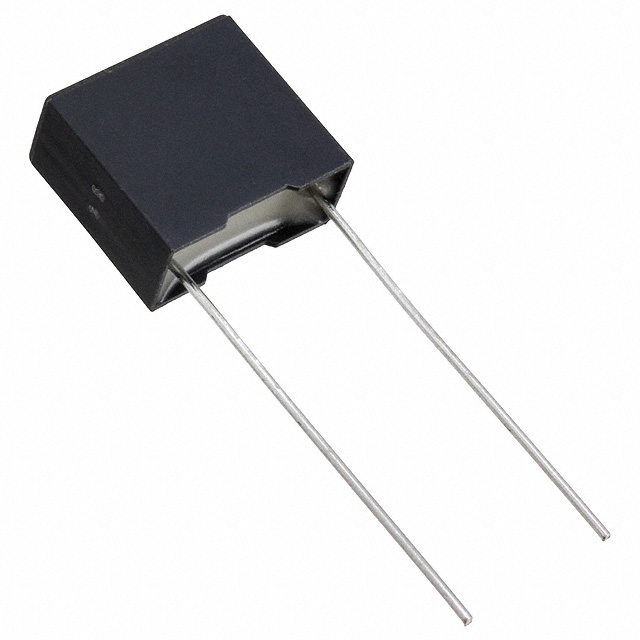

R46KF247040P0M

Active

KEMET

CAP FILM 0.047UF 20% 560VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR46KF247040P0M Datasheet +3

R46KF247040P0M

Active

KEMET

CAP FILM 0.047UF 20% 560VDC RAD

Deep-Dive with AI

DocumentsR46KF247040P0M Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R46KF247040P0M

Applications	EMI, RFI Suppression
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	4 mm
Size / Dimension [y]	0.157 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

R46KF Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ratings	Applications	Dielectric Material	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Voltage Rating - AC	Voltage Rating - DC	Tolerance	Lead Spacing	Lead Spacing	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET R46KF268040M1K	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial	12.1 mm	0.476 "	0.068 µF	275 V	560 V	10 %	0.394 in	10 mm	PC Pins
KEMET R46KF315000P0M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial	12.1 mm	0.476 "	0.15 ÁF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins
KEMET R46KF310000P1M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			100000 pF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm
KEMET R46KF233000M1M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			0.033 çF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm
KEMET R46KF233040H1M	-40 °C	125 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			0.033 çF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm
KEMET R46KF215000N0M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			15000 pF	275 V	560 V	20 %	0.394 in	10 mm	PC Pins			0.512 in	0.157 in	13 mm	4 mm
KEMET R46KF247040P0M	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial				275 V	560 V	20 %	0.394 in	10 mm	PC Pins			0.512 in	0.157 in	13 mm	4 mm
KEMET R46KF210050N0K	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial			10000 pF	275 V	560 V	10 %	0.394 in	10 mm	PC Pins			0.512 in	0.157 in	13 mm	4 mm
KEMET R46KF247040H1M	-40 °C	125 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial	12.1 mm	0.476 "		275 V	560 V	20 %	0.394 in	10 mm	PC Pins
KEMET R46KF247050N0K	-40 °C	110 °C	Through Hole	X2	EMI RFI Suppression	Metallized Polypropylene (PP)	Radial				275 V	560 V	10 %	0.394 in	10 mm	PC Pins	0.437 in	11.1 mm	0.512 in	0.197 "	13 mm	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.71
		10	$ 0.50
		50	$ 0.42
		100	$ 0.34
		500	$ 0.28
		1800	$ 0.24
		3600	$ 0.22
		5400	$ 0.21
Newark	Each	10	$ 0.36
		25	$ 0.35
		50	$ 0.33
		100	$ 0.31
		500	$ 0.26
		1000	$ 0.26
		2500	$ 0.21

Description

General part information

R46KF Series

0.047 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
