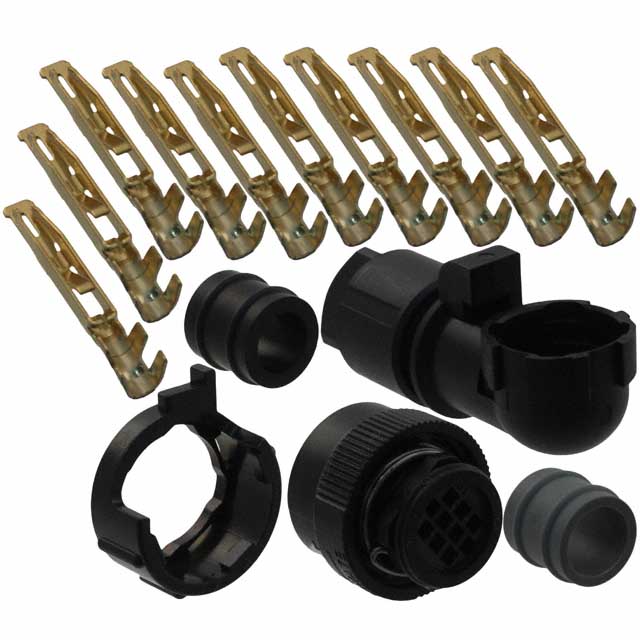

JN2FS10SLK-R

Active

JAE Electronics

CONN PLUG FMALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG FMALE 10POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	JN2FS10SLK-R

Backshell Material, Plating	Synthetic Resin
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Size - Insert	S
Termination	Crimp

Part	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Contact Size	Orientation	Shielding	Type	Shell Finish	Mounting Type	Connector Type	Housing Color	Ingress Protection	Shell Size - Insert	Insert Material	Features	Contact Shape	Fastening Type	Note	Backshell Material, Plating	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Color
JAE Electronics JN2FS10SL2-R	Crimp	10	100 °C	-20 C	Zinc Alloy	22	N	Unshielded	For Female Sockets	Zinc	Free Hanging (In-Line) Right Angle	Plug Housing	Black	IP67 - Dust Tight Waterproof	S	Synthetic Resin	Backshell Coupling Nut Rotatable	Circular	Push-Twist	Contacts Not Included
JAE Electronics JN2FS10SL3-R	Crimp	10	100 °C	-20 C	Zinc Alloy	22	N	Unshielded	For Female Sockets	Zinc	Free Hanging (In-Line) Right Angle	Plug Housing	Black	IP67 - Dust Tight Waterproof	S	Synthetic Resin	Backshell Coupling Nut Rotatable	Circular	Push-Twist	Contacts Not Included
JAE Electronics JN2FS10SL1-R	Crimp	10	100 °C	-20 C	Zinc Alloy	22	N	Unshielded	For Female Sockets	Zinc	Free Hanging (In-Line) Right Angle	Plug Housing	Black	IP67 - Dust Tight Waterproof	S	Synthetic Resin	Backshell Coupling Nut Rotatable	Circular	Push-Twist	Contacts Not Included
JAE Electronics JN2FS10SLK-R		10	100 °C	-20 C			N				Free Hanging (In-Line) Right Angle	Female Sockets Plug		IP67 - Dust Tight Waterproof	S		Backshell Coupling Nut Rotatable		Push-Twist		Synthetic Resin	Crimp	Copper Alloy	0.099 µm	3.9 µin	Gold	3 A	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug, Female Sockets Crimp
