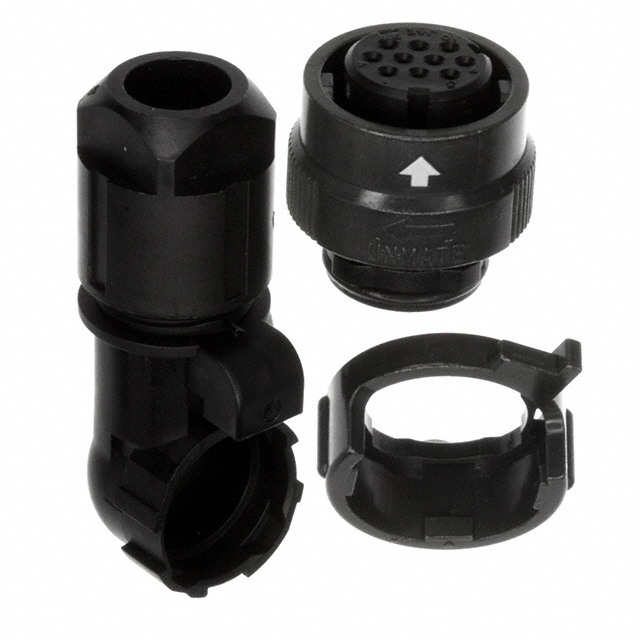

JN2FS10SL2-R

Active

JAE Electronics

CONN PLG HSG FMAL 10PS INLINE RA

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLG HSG FMAL 10PS INLINE RA

Technical Specifications

Parameters and characteristics for this part

Specification	JN2FS10SL2-R

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell, Rotatable
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Finish	Zinc
Shell Material	Zinc Alloy
Shell Size - Insert	S
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Contact Size	Orientation	Shielding	Type	Shell Finish	Mounting Type	Connector Type	Housing Color	Ingress Protection	Shell Size - Insert	Insert Material	Features	Contact Shape	Fastening Type	Note	Backshell Material, Plating	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Color
JAE Electronics JN2FS10SL2-R	Crimp	10	100 °C	-20 C	Zinc Alloy	22	N	Unshielded	For Female Sockets	Zinc	Free Hanging (In-Line) Right Angle	Plug Housing	Black	IP67 - Dust Tight Waterproof	S	Synthetic Resin	Backshell Coupling Nut Rotatable	Circular	Push-Twist	Contacts Not Included
JAE Electronics JN2FS10SL3-R	Crimp	10	100 °C	-20 C	Zinc Alloy	22	N	Unshielded	For Female Sockets	Zinc	Free Hanging (In-Line) Right Angle	Plug Housing	Black	IP67 - Dust Tight Waterproof	S	Synthetic Resin	Backshell Coupling Nut Rotatable	Circular	Push-Twist	Contacts Not Included
JAE Electronics JN2FS10SL1-R	Crimp	10	100 °C	-20 C	Zinc Alloy	22	N	Unshielded	For Female Sockets	Zinc	Free Hanging (In-Line) Right Angle	Plug Housing	Black	IP67 - Dust Tight Waterproof	S	Synthetic Resin	Backshell Coupling Nut Rotatable	Circular	Push-Twist	Contacts Not Included
JAE Electronics JN2FS10SLK-R		10	100 °C	-20 C			N				Free Hanging (In-Line) Right Angle	Female Sockets Plug		IP67 - Dust Tight Waterproof	S		Backshell Coupling Nut Rotatable		Push-Twist		Synthetic Resin	Crimp	Copper Alloy	0.099 µm	3.9 µin	Gold	3 A	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable
