HCSD-05-D-15.00-01-N-G

Active

Samtec Inc.

.100 C.L. MOLD TO POS. DOUBLE RO

Search across all available documentation for this part.

Active

Samtec Inc.

.100 C.L. MOLD TO POS. DOUBLE RO

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Cable Termination	Wire Gauge	Color	Number of Rows	Number of Positions	Connector Type	Features	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Length	Pitch - Cable	Pitch - Cable	Length [x]
Samtec Inc. HCSD-05-01	Gold	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	10 Áin	0.25 Ám	Ribbon Cable	IDC	28 AWG	Black	2	10	Socket
Samtec Inc. HCSD-05-01-N	Gold	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	10 Áin	0.25 Ám	Ribbon Cable	IDC	28 AWG	Black	2	10	Socket	Polarizing Key
Samtec Inc. HCSD-05-D-11.40-01-N-G-R	Gold							10 Áin	0.25 Ám		IDC			2	10	Socket to Socket Reversed	Polarizing Key	Unshielded	0.1 in	2.54 mm	11.4 "	289.56 mm	11.4 "	0.05 "	1.27 mm
Samtec Inc. HCSD-05-D-15.00-01-N-G	Gold							10 Áin	0.25 Ám		IDC			2	10	Socket to Socket	Polarizing Key	Unshielded	0.1 in	2.54 mm		381 mm		0.05 "	1.27 mm	15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

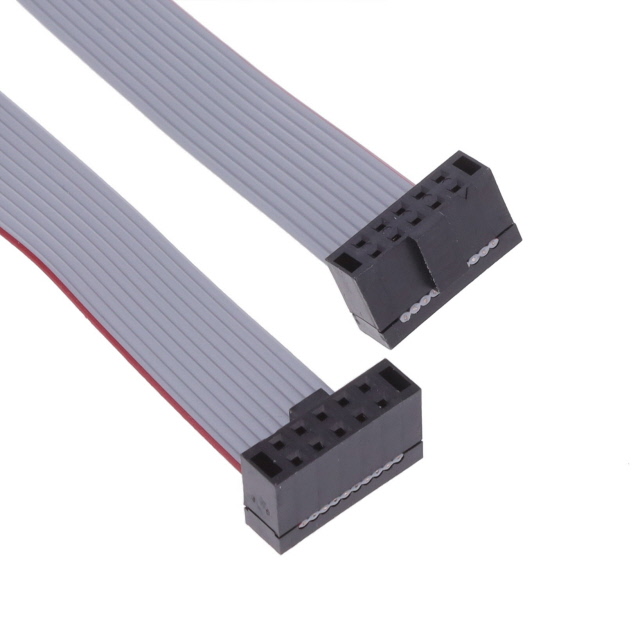

10 Position Cable Assembly Rectangular Socket to Socket 1.25' (381.00mm)
