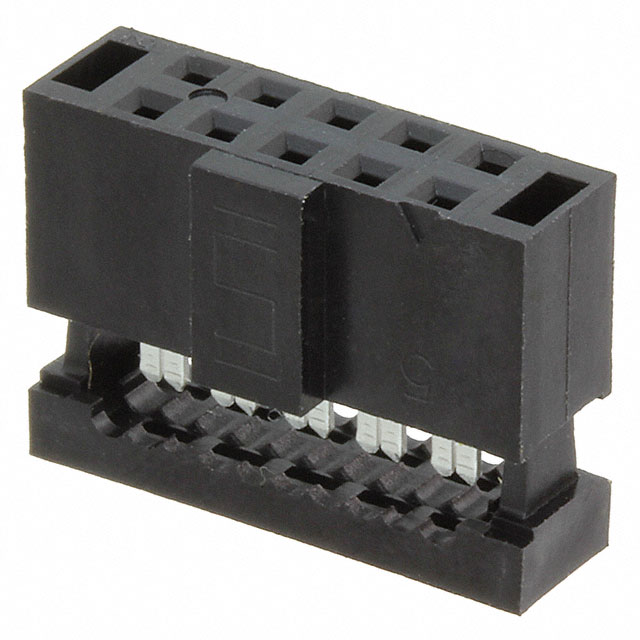

HCSD-05-01-N

Active

Samtec Inc.

WIRE-TO-BOARD CONNECTOR, HCSD SERIES, IDC / IDT, RECEPTACLE, 10, 2.54 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Samtec Inc.

WIRE-TO-BOARD CONNECTOR, HCSD SERIES, IDC / IDT, RECEPTACLE, 10, 2.54 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Cable Termination	Wire Gauge	Color	Number of Rows	Number of Positions	Connector Type	Features	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Length	Pitch - Cable	Pitch - Cable	Length [x]
Samtec Inc. HCSD-05-01	Gold	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	10 Áin	0.25 Ám	Ribbon Cable	IDC	28 AWG	Black	2	10	Socket
Samtec Inc. HCSD-05-01-N	Gold	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Female Socket	10 Áin	0.25 Ám	Ribbon Cable	IDC	28 AWG	Black	2	10	Socket	Polarizing Key
Samtec Inc. HCSD-05-D-11.40-01-N-G-R	Gold							10 Áin	0.25 Ám		IDC			2	10	Socket to Socket Reversed	Polarizing Key	Unshielded	0.1 in	2.54 mm	11.4 "	289.56 mm	11.4 "	0.05 "	1.27 mm
Samtec Inc. HCSD-05-D-15.00-01-N-G	Gold							10 Áin	0.25 Ám		IDC			2	10	Socket to Socket	Polarizing Key	Unshielded	0.1 in	2.54 mm		381 mm		0.05 "	1.27 mm	15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Rectangular Socket Connector IDC Gold 28 AWG
