T8AN6RQ

Active

BANNER ENGINEERING

T8 SERIES: OPPOSED MODERANGE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

T8 SERIES: OPPOSED MODERANGE

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Output Configuration	Connection Method	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Cable Length	Cable Length	Light Source	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]
BANNER ENGINEERING T8AN6D50	NEMA 6P IEC IP67	NPN - Light-ON	Cable with Connector	50 mm	1.969 in	55 °C	-20 C	1 ms	78.74 in	2 m	Red LED	Diffuse	30 VDC	10 VDC
BANNER ENGINEERING T8AN6D100	NEMA 6P IEC IP67	NPN - Light-ON	Cable with Connector	100 mm	3.937 in	55 °C	-20 C	1 ms	78.74 in	2 m	Red LED	Diffuse	30 VDC	10 VDC
BANNER ENGINEERING T8AN6RQ	NEMA 6P IEC IP67	NPN - Light-ON	Cable with Connector	2 m	78.74 "	55 °C	-20 C	1 ms	78.74 in	2 m	Red LED	Through-Beam	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 126.00
Newark	Each	1	$ 129.00

General part information

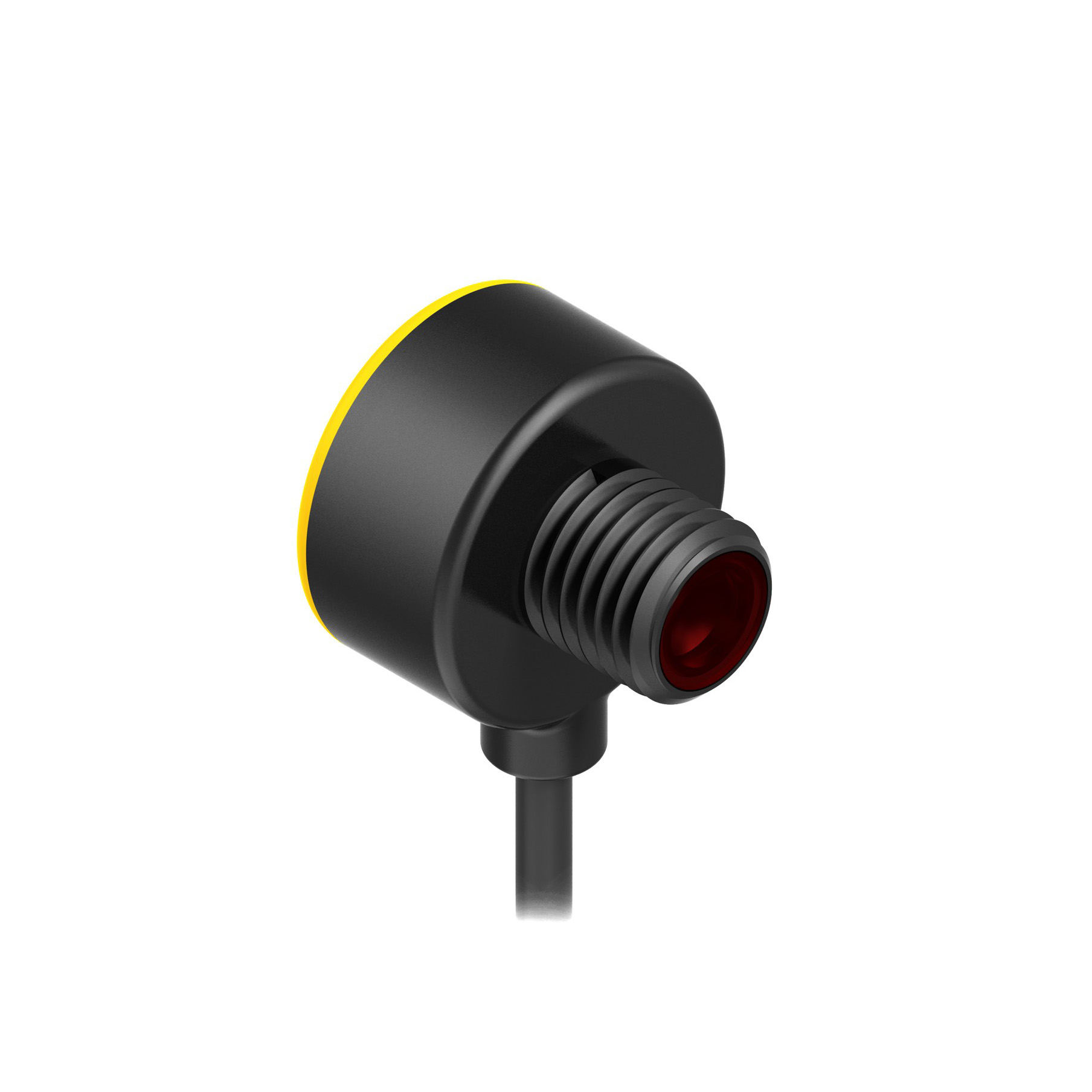

Through-Beam Optical Sensor 78.740" (2m) NPN - Light-ON
