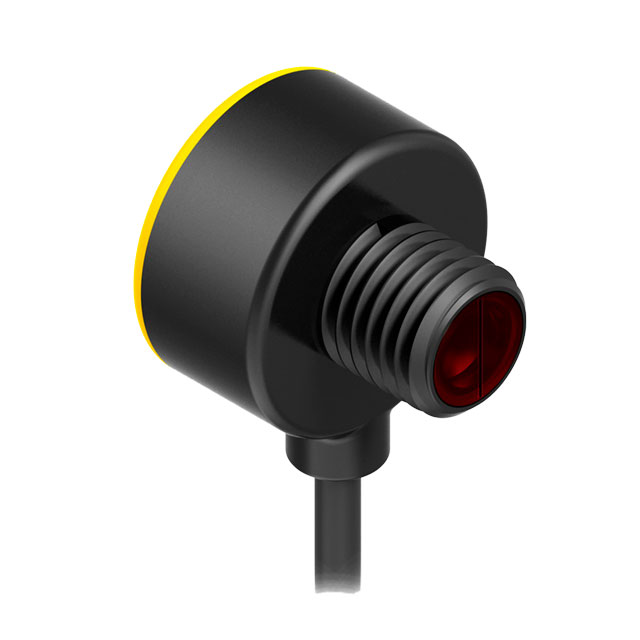

T8AN6D100

Active

BANNER ENGINEERING

PHOTO SEN 100MM NPN

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN 100MM NPN

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Output Configuration	Connection Method	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Cable Length	Cable Length	Light Source	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]
BANNER ENGINEERING T8AN6D50	NEMA 6P IEC IP67	NPN - Light-ON	Cable with Connector	50 mm	1.969 in	55 °C	-20 C	1 ms	78.74 in	2 m	Red LED	Diffuse	30 VDC	10 VDC
BANNER ENGINEERING T8AN6D100	NEMA 6P IEC IP67	NPN - Light-ON	Cable with Connector	100 mm	3.937 in	55 °C	-20 C	1 ms	78.74 in	2 m	Red LED	Diffuse	30 VDC	10 VDC
BANNER ENGINEERING T8AN6RQ	NEMA 6P IEC IP67	NPN - Light-ON	Cable with Connector	2 m	78.74 "	55 °C	-20 C	1 ms	78.74 in	2 m	Red LED	Through-Beam	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 132.00
Newark	Each	1	$ 135.00

General part information

Diffuse Optical Sensor 3.937" (100mm) NPN - Light-ON
