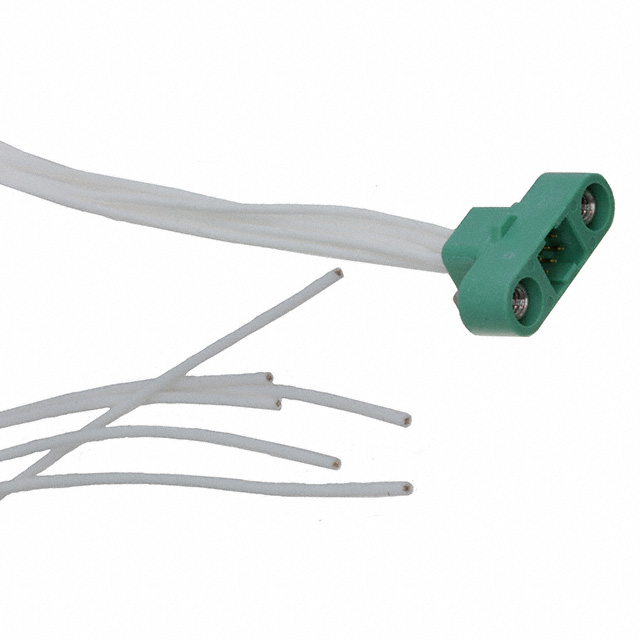

G125-MC10605M1-0450L

Active

Harwin Inc.

3+3 POS. MALE DIL 26AWG CABLE ASSEMBLY, 450MM, SINGLE-END, SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125 Spec Sheet G125-2040696L0 +2

G125-MC10605M1-0450L

Active

Harwin Inc.

3+3 POS. MALE DIL 26AWG CABLE ASSEMBLY, 450MM, SINGLE-END, SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125 Spec Sheet G125-2040696L0 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MC10605M1-0450L

Cable Termination	Crimp
Connector Type	Plug to Individual Wire Leads
Contact Finish	Gold
Features	Screw Lock, Polarizing Key
Length [x]	17.76 in
Length [x]	450 mm
Number of Positions	6
Number of Rows	2
Pitch - Connector	0.049 in
Pitch - Connector	1.25 mm
Shielding	Unshielded

G125-MC1 Series

Part	Pitch - Connector	Pitch - Connector	Number of Rows	Cable Termination	Features	Length	Length	Length	Connector Type	Number of Positions	Shielding	Contact Finish	Length [x]	Length [x]	Length [x]	Number of Positions
Harwin Inc. G125-MC11005M1-0150F1	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Socket to Plug	10	Unshielded	Gold
Harwin Inc. G125-MC12605M1-0150M1	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Plug	26	Unshielded	Gold
Harwin Inc. G125-MC12005M1-0150L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Individual Wire Leads	20	Unshielded	Gold
Harwin Inc. G125-MC11005M1-0150L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Individual Wire Leads	10	Unshielded	Gold
Harwin Inc. G125-MC15005L4-0150F	0.049 in	1.25 mm	2	Crimp	Latch Holder Latch Lock Polarizing Key	150 mm	5.91 "	0.492 ft	Socket to Plug	50	Unshielded	Gold
Harwin Inc. G125-MC11005M1-0450L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock				Plug to Individual Wire Leads	10	Unshielded	Gold	17.76 in	450 mm
Harwin Inc. G125-MC11605L4-0300M	0.049 in	1.25 mm	2	Crimp	Latch Lock Polarizing Key				Plug to Plug		Unshielded	Gold	0.984 '	300 mm	11.81 "	16
Harwin Inc. G125-MC10605M1-0450L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock				Plug to Individual Wire Leads	6	Unshielded	Gold	17.76 in	450 mm
Harwin Inc. G125-MC15005M1-0150L	0.049 in	1.25 mm	2	Crimp	Polarizing Key Screw Lock	150 mm	5.91 "	0.492 ft	Plug to Individual Wire Leads	50	Unshielded	Gold
Harwin Inc. G125-MC11605L4-0150M	0.049 in	1.25 mm	2	Crimp	Latch Lock Polarizing Key	150 mm	5.91 "	0.492 ft	Plug to Plug		Unshielded	Gold				16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 31.08
		10	$ 26.42
		30	$ 24.45
		50	$ 23.58
		100	$ 22.46
		250	$ 21.05
Newark	Each	1	$ 34.88
		25	$ 31.96
		50	$ 29.69
		100	$ 28.72
		250	$ 27.74

Description

General part information

G125-MC1 Series

6 Position Cable Assembly Rectangular Plug to Individual Wire Leads 1.48' (450.00mm)

Documents

Technical documentation and resources

G125 Spec Sheet

Datasheet
