G125-MC11005M1-0150F1
ActiveHarwin Inc.

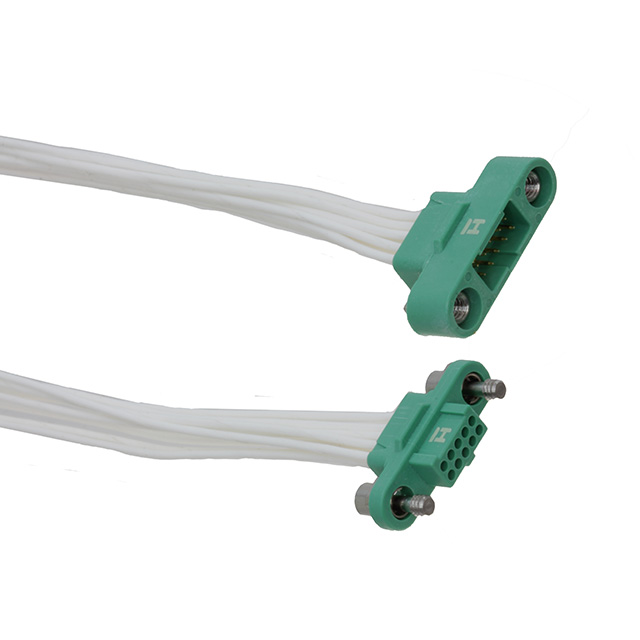

5+5 POS. MALE-FEMALE DIL 26AWG CABLE ASSEMBLY, 150MM, SCREW-LOK ROHS COMPLIANT: YES
G125-MC11005M1-0150F1
ActiveHarwin Inc.
5+5 POS. MALE-FEMALE DIL 26AWG CABLE ASSEMBLY, 150MM, SCREW-LOK ROHS COMPLIANT: YES
Description
General part information
G125-MC1 Series
10 Position Cable Assembly Rectangular Socket to Plug 0.492' (150.00mm, 5.91")
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-MC11005M1-0150F1 |
|---|---|
| Cable Termination | Crimp |
| Color | Individual, White |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Features | Screw Lock, Polarizing Key |
| Length | 0.492 ft |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Connector | 0.049 in |
| Shielding | Unshielded |
