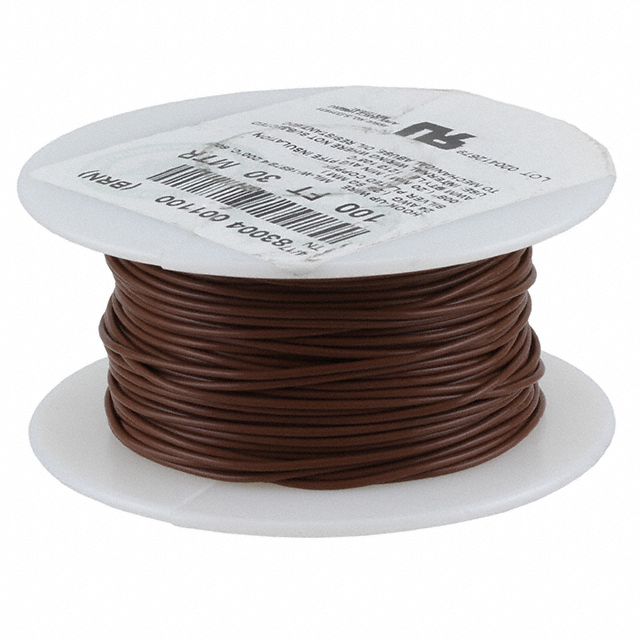

83001 001100 - Brown Hook-up

83001 001100

Active
Belden Inc.

HOOK-UP STRND 28AWG BROWN 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCabling Solutions for Industrial Applications
83001 001100 - Brown Hook-up

83001 001100

Active
Belden Inc.

HOOK-UP STRND 28AWG BROWN 100'

Deep-Dive with AI

DocumentsDatasheetCabling Solutions for Industrial Applications

Technical Specifications

Parameters and characteristics for this part

Specification83001 001100
Cable TypeHook-Up
Conductor MaterialCopper, Silver Coated
Conductor Strand [custom]36 AWG
Conductor Strand [custom]7
FeaturesHigh Temperature
Jacket (Insulation) Diameter [diameter]0.89 mm
Jacket (Insulation) Diameter [diameter]0.035 in
Jacket (Insulation) MaterialPolytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness0.25 mm
Jacket (Insulation) Thickness0.01 in
Jacket ColorBrown
Length [x]30.5 m
Length [x]100 ft
Operating Temperature200 °C
QualificationMIL-W-16878/4
RatingsUL Style 1213
Voltage600 V
Wire Gauge28 AWG

83001 Series

PartConductor Strand [custom]Conductor Strand [custom]Jacket ColorJacket (Insulation) MaterialConductor MaterialQualificationLengthLengthCable TypeJacket (Insulation) Diameter [diameter]Jacket (Insulation) Diameter [diameter]RatingsFeaturesVoltageWire GaugeJacket (Insulation) ThicknessJacket (Insulation) ThicknessLength [x]Length [x]Operating Temperature
Belden Inc.
83001 0041000
36 AWG
7
Yellow
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
1000 ft
304.8 m
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
Belden Inc.
83001 007100
36 AWG
7
Violet
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
30.5 m
100 ft
200 °C
Belden Inc.
83001 0071000
36 AWG
7
Violet
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
1000 ft
304.8 m
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
Belden Inc.
83001 008100
36 AWG
7
Gray
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
30.5 m
100 ft
200 °C
Belden Inc.
83001 0101000
36 AWG
7
Black
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
1000 ft
304.8 m
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
Belden Inc.
83001 010100
36 AWG
7
Black
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
30.5 m
100 ft
Belden Inc.
83001 006100
36 AWG
7
Blue
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
30.5 m
100 ft
200 °C
Belden Inc.
83001 001100
36 AWG
7
Brown
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
30.5 m
100 ft
200 °C
Belden Inc.
83001 0021000
36 AWG
7
Red
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
1000 ft
304.8 m
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in
Belden Inc.
83001 0081000
36 AWG
7
Gray
Polytetrafluoroethylene (PTFE)
Copper
Silver Coated
MIL-W-16878/4
1000 ft
304.8 m
Hook-Up
0.89 mm
0.035 in
UL Style 1213
High Temperature
600 V
28 AWG
0.25 mm
0.01 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 1$ 80.76
3$ 76.04

Description

General part information

83001 Series

28 AWG Hook-Up Wire 7/36 Brown 600V 100.0' (30.5m)
