83001 008100

Active

Belden Inc.

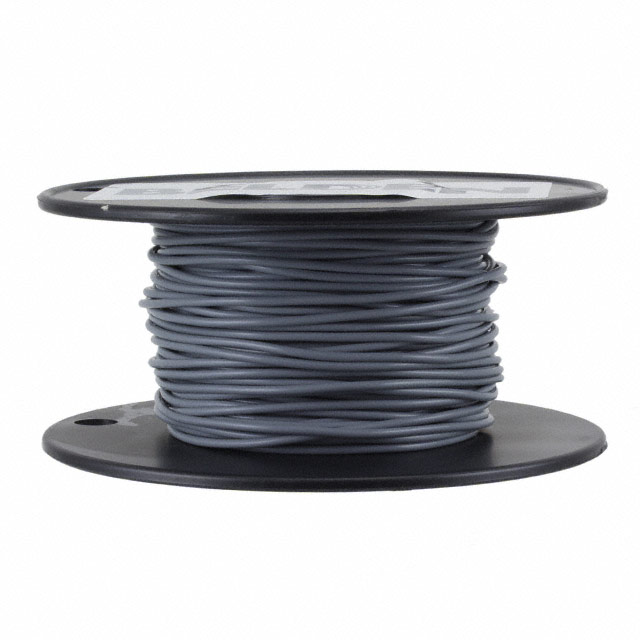

HOOK-UP STRND 28AWG GRAY 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

83001 008100

Active

Belden Inc.

HOOK-UP STRND 28AWG GRAY 100'

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83001 008100

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	High Temperature
Jacket (Insulation) Diameter [diameter]	0.89 mm
Jacket (Insulation) Diameter [diameter]	0.035 in
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature	200 °C
Qualification	MIL-W-16878/4
Ratings	UL Style 1213
Voltage	600 V
Wire Gauge	28 AWG

83001 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Material	Conductor Material	Qualification	Length	Length	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Features	Voltage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Operating Temperature
Belden Inc. 83001 0041000	36 AWG	7	Yellow	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4	1000 ft	304.8 m	Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in
Belden Inc. 83001 007100	36 AWG	7	Violet	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4			Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in	30.5 m	100 ft	200 °C
Belden Inc. 83001 0071000	36 AWG	7	Violet	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4	1000 ft	304.8 m	Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in
Belden Inc. 83001 008100	36 AWG	7	Gray	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4			Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in	30.5 m	100 ft	200 °C
Belden Inc. 83001 0101000	36 AWG	7	Black	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4	1000 ft	304.8 m	Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in
Belden Inc. 83001 010100	36 AWG	7	Black	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4			Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in	30.5 m	100 ft
Belden Inc. 83001 006100	36 AWG	7	Blue	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4			Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in	30.5 m	100 ft	200 °C
Belden Inc. 83001 001100	36 AWG	7	Brown	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4			Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in	30.5 m	100 ft	200 °C
Belden Inc. 83001 0021000	36 AWG	7	Red	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4	1000 ft	304.8 m	Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in
Belden Inc. 83001 0081000	36 AWG	7	Gray	Polytetrafluoroethylene (PTFE)	Copper Silver Coated	MIL-W-16878/4	1000 ft	304.8 m	Hook-Up	0.89 mm	0.035 in	UL Style 1213	High Temperature	600 V	28 AWG	0.25 mm	0.01 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 80.76
		3	$ 76.04

Description

General part information

83001 Series

28 AWG Hook-Up Wire 7/36 Gray 600V 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

Cabling Solutions for Industrial Applications

Datasheet
