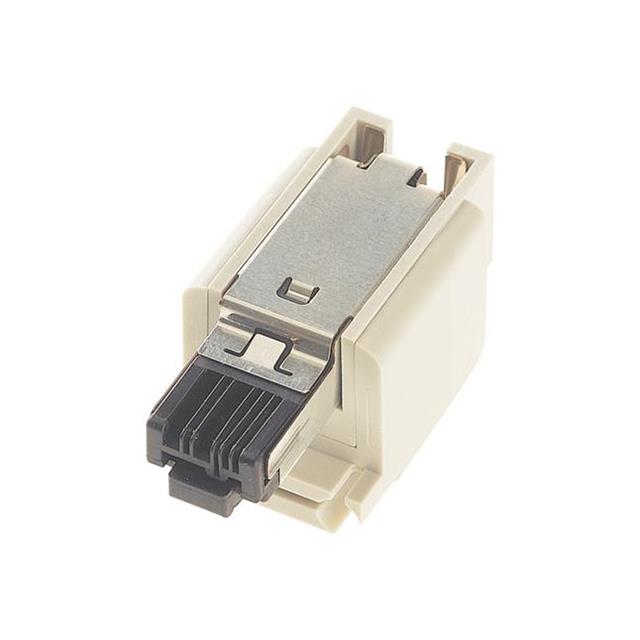

HAN BRID-RJ45 C-M RJ INDUSTRIAL AWG26

Search across all available documentation for this part.

Active

HARTING

HAN BRID-RJ45 C-M RJ INDUSTRIAL AWG26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09120033013	09120033 Series

Color	-	Gray
Connector Type	-	Insert, RJ45, Insert without Contacts
Contact Type	-	Han® C
Current Rating (Amps)	-	10 - 40 A
Gender	-	Male, Female
Housing Material	-	Polycarbonate (PC)
Material Flammability Rating	-	UL94 V-0
null		-
Number of Positions	-	8p8c
Number of Positions	-	Ground
Number of Positions	-	3
Number of Positions	-	0
Operating Temperature	-	70 - 125 °C
Operating Temperature	-	-40 °C
Size	-	3 A
Termination Style	-	IDC, Crimp
Voltage Rating	-	24 - 400 V

HAN-BRID RJ45 C (HIROSE, 24-26AWG, 8WIRE) + 2 10AMP CONTACTS (NOT INCLUDED)

Part	Color	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Connector Type	Voltage Rating	Material Flammability Rating	Housing Material	Number of Positions	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Size
HARTING 09120033031	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING 09120033151	Gray	Female	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	Ground	3	0	3 A
HARTING 09120033015	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c					3 A
HARTING 09120033001	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING 09120033016	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c					3 A
HARTING 09120033013
HARTING 09120033051	Gray	Male	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	Ground	3	0	3 A
HARTING 09120033021	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING 09120033014
HARTING 09120033011	Gray	Male	70 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
