09120033031

Active

HARTING

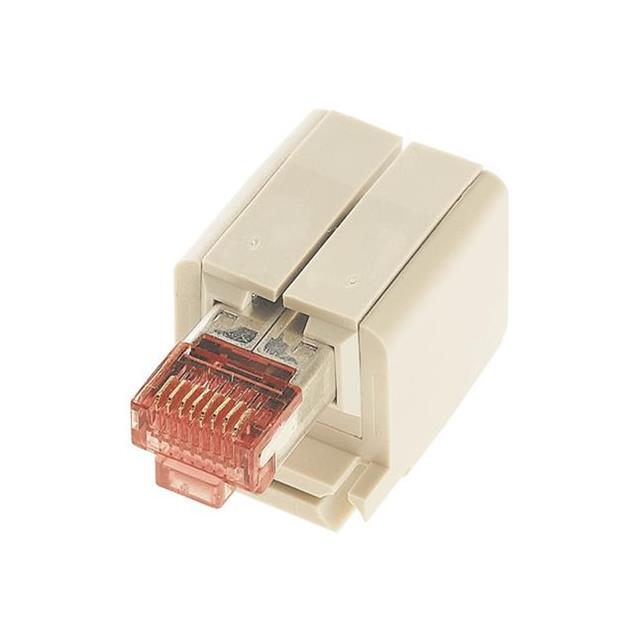

HAN-BRID RJ45 C (HIROSE, 24-26AWG, 8WIRE) + 2 10AMP CONTACTS (NOT INCLUDED)

Search across all available documentation for this part.

Active

HARTING

HAN-BRID RJ45 C (HIROSE, 24-26AWG, 8WIRE) + 2 10AMP CONTACTS (NOT INCLUDED)

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09120033031	09120033 Series

	-	-
Color	Gray	Gray
Connector Type	Insert, RJ45	Insert, RJ45, Insert without Contacts
Contact Type	-	Han® C
Current Rating (Amps)	10 A	10 - 40 A
Gender	Male	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	8p8c	8p8c
Number of Positions	-	Ground
Number of Positions	-	3
Number of Positions	-	0
Operating Temperature [Max]	125 °C	70 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	-	3 A
Termination Style	IDC	IDC, Crimp
Voltage Rating	25 V	24 - 400 V

HAN-BRID RJ45 C (HIROSE, 24-26AWG, 8WIRE) + 2 10AMP CONTACTS (NOT INCLUDED)

Part	Color	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Connector Type	Voltage Rating	Material Flammability Rating	Housing Material	Number of Positions	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Size
HARTING 09120033031	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING 09120033151	Gray	Female	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	Ground	3	0	3 A
HARTING 09120033015	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c					3 A
HARTING 09120033001	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING 09120033016	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c					3 A
HARTING 09120033013
HARTING 09120033051	Gray	Male	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	Ground	3	0	3 A
HARTING 09120033021	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING 09120033014
HARTING 09120033011	Gray	Male	70 °C	-40 °C	10 A	IDC	Insert, RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert, RJ45 Gray 8p8c Position IDC
