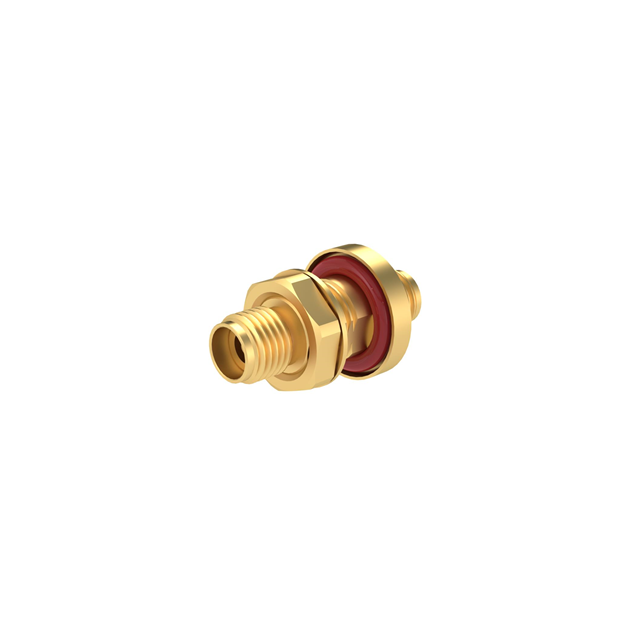

R127753000
ActiveRadiall USA, Inc.
SMA 2.9 / FEMALE - FEMALE BULKHE
Deep-Dive with AI
Search across all available documentation for this part.
R127753000
ActiveRadiall USA, Inc.
SMA 2.9 / FEMALE - FEMALE BULKHE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R127753000 |
|---|---|
| Adapter Series [Max] | 2.92 mm |
| Adapter Series [Min] | 2.92 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert From (Adapter End) | OS-2.9, Jack, Female Socket |
| Convert To (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | OS-2.9 Jack, Female Socket |
| Frequency - Max [Max] | 46 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 354.71 | |
| 10 | $ 328.69 | |||
| 25 | $ 316.87 | |||
Description
General part information
R12775 Series
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
