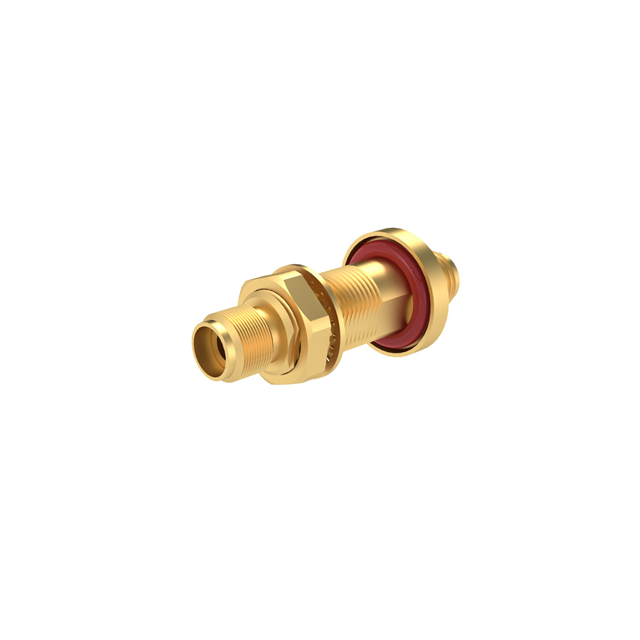

R127753120

Active

Radiall USA, Inc.

COAX ADAPT SMA TO SMA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT SMA TO SMA

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Material	Convert To (Adapter End)	Style	Frequency - Max [Max]	Mating Cycles	Adapter Type	Body Material	Impedance	Adapter Series	Conversion Type	Mounting Feature	Center Gender	Convert From (Adapter End)	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Series [Max]	Adapter Series [Min]
Radiall USA, Inc. R127753120	Beryllium Copper	Female Socket SMA Jack	Straight	46 GHz	500	Jack to Jack	Stainless Steel	50 Ohms	SMA to SMA	Same Series	Bulkhead	Female to Female	Female Socket SMA Jack	Gold	-65 ░C	165 °C	Gold
Radiall USA, Inc. R127753000	Beryllium Copper	OS-2.9 Jack Female Socket	Straight	46 GHz	500	Jack to Jack	Stainless Steel	50 Ohms		Same Series	Bulkhead	Female to Female	Jack Female Socket OS-2.9	Gold	-65 ░C	165 °C	Gold	2.92 mm	2.92 mm	2.92 mm	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 542.41

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
