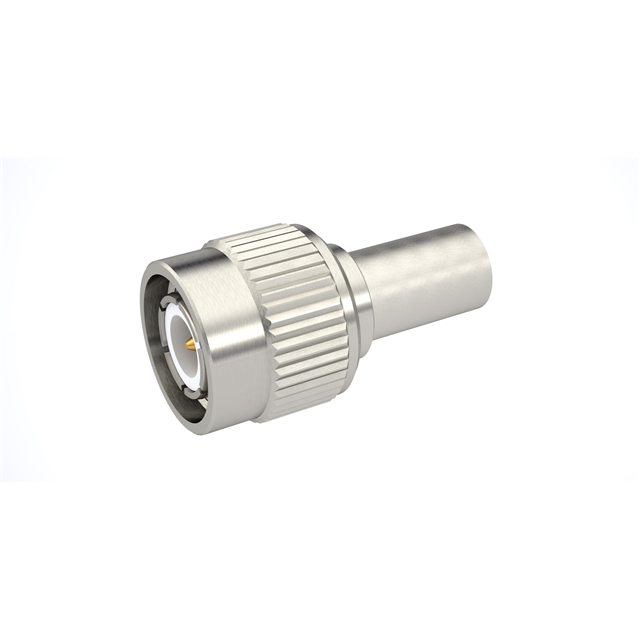

R143083000
ActiveRadiall USA, Inc.
TNC M STR CR 5/50
Deep-Dive with AI
Search across all available documentation for this part.
R143083000
ActiveRadiall USA, Inc.
TNC M STR CR 5/50
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R143083000 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-142, 400, 223 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.18 | |
| 10 | $ 14.89 | |||
| 25 | $ 14.11 | |||
| 50 | $ 13.91 | |||
| 100 | $ 12.27 | |||
| 250 | $ 11.45 | |||
| 500 | $ 11.21 | |||
Description
General part information
R14308 Series
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
