Radiall USA, Inc.

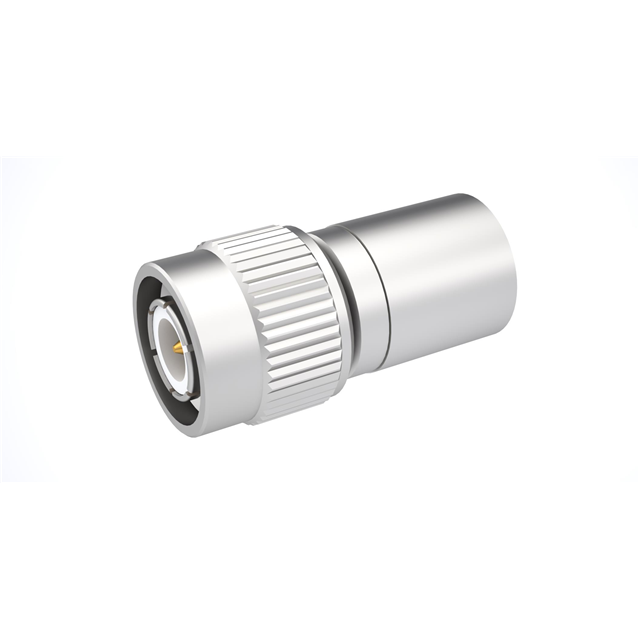

RF TNC CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, LOCKING, PLUG,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF TNC CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, LOCKING, PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	R143089117

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-400, AEP-400FR
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Housing Color	Center Contact Plating	Voltage Rating	Shield Termination	Mating Cycles	Number of Ports	Body Material	Contact Termination	Center Contact Material	Mounting Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Frequency - Max [Max]	Connector Style	Connector Type	Cable Group	Body Finish	Cable Group	Includes
Radiall USA, Inc. R143088101	Silver	Gold	500 V	Crimp	500	1	Stainless Steel	Crimp	Brass	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	50 Ohms	11 GHz	TNC	Male Pin Plug
Radiall USA, Inc. R143089117	Silver	Gold	500 V	Crimp	500	1	Brass	Crimp	Brass	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	50 Ohms	11 GHz	TNC	Male Pin Plug	AEP-400FR LMR-400	White Bronze
Radiall USA, Inc. R143082000	Silver	Gold	500 V	Crimp	500	1	Brass	Crimp	Brass	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	50 Ohms	11 GHz	TNC	Male Pin Plug	RG-58	Nickel	141
Radiall USA, Inc. R143083000	Silver	Gold	500 V	Crimp	500	1	Brass	Crimp	Brass	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	50 Ohms	11 GHz	TNC	Male Pin Plug	223 400 RG-142	Nickel		1 Connector 1 Contact 1 Ferrule
