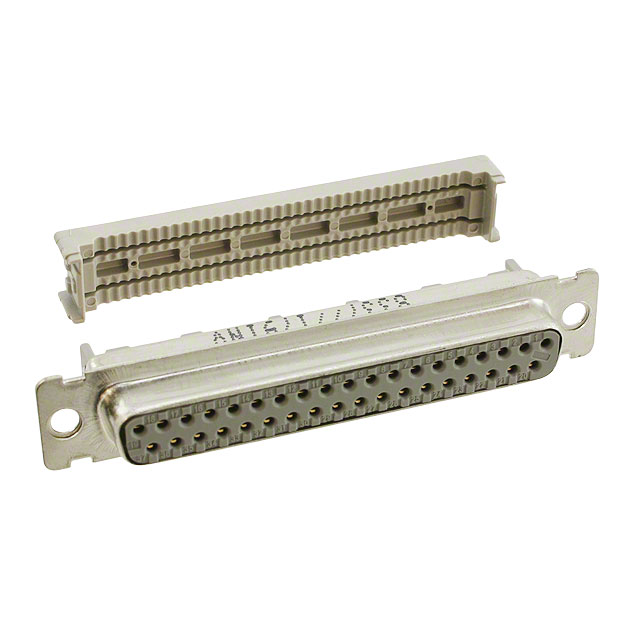

8337-8000
Active3M (TC)
CONNECTOR,D-SHELL,CABLE MOUNT,PLUG,37 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,HOLE .099-.111 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
8337-8000
Active3M (TC)
CONNECTOR,D-SHELL,CABLE MOUNT,PLUG,37 CONTACTS,SKT,0.109 PITCH,IDC TERMINAL,HOLE .099-.111 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8337-8000 |
|---|---|
| Color | Gray |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Feed Through |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | IDC, Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.90 | |
| 10 | $ 9.81 | |||
| 25 | $ 9.24 | |||
| 50 | $ 9.00 | |||
| 200 | $ 8.76 | |||
| 400 | $ 7.82 | |||
| 600 | $ 7.34 | |||
| 1000 | $ 6.49 | |||
Description
General part information
8337 Series
37 Position D-Sub Receptacle, Female Sockets Connector
