8337-7003

Obsolete

3M (TC)

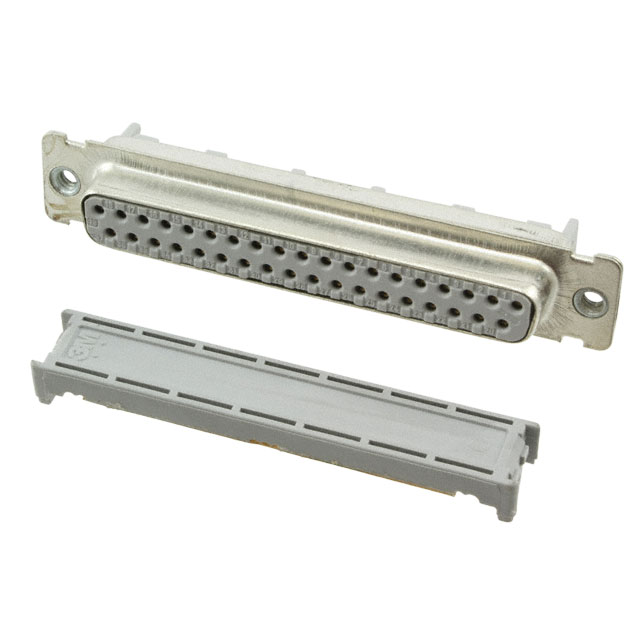

CONN D-SUB RCPT 37P PNL MNT IDC

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN D-SUB RCPT 37P PNL MNT IDC

Technical Specifications

Parameters and characteristics for this part

Specification	8337-7003

Color	Gray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Connector Style	Flange Feature	Number of Rows	Number of Positions	Contact Material	Shell Size, Connector Layout	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Material Flammability Rating	Dielectric Material	Features
3M (TC) 8337-7000	0.76 Ám	30 Áin	Receptacle Female Sockets	Signal	D-Sub	Housing/Shell (Unthreaded)	2	37	Copper Alloy	4 (DC C)	Gray	IDC Ribbon Cable	105 ░C	-55 °C	Gold	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester
3M (TC) 8337-7003	0.76 Ám	30 Áin	Receptacle Female Sockets	Signal	D-Sub	Housing/Shell (4-40)	2	37	Copper Alloy	4 (DC C)	Gray	IDC Ribbon Cable	105 ░C	-55 °C	Gold	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester
3M (TC) 8337-8003	0.76 Ám	30 Áin	Receptacle Female Sockets	Signal	D-Sub	Housing/Shell (4-40)	2	37	Copper Alloy	4 (DC C)	Gray	IDC Ribbon Cable	105 ░C	-55 °C	Gold	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through
3M (TC) 8337-8000	0.76 Ám	30 Áin	Receptacle Female Sockets	Signal	D-Sub	Housing/Shell (Unthreaded)	2	37	Copper Alloy	4 (DC C)	Gray	IDC Ribbon Cable	105 ░C	-55 °C	Gold	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through
3M (TC) 8337-6009	0.76 Ám	30 Áin	Receptacle Female Sockets	Signal	D-Sub	Housing/Shell (Unthreaded)	2	37	Copper Alloy	4 (DC C)	Gray	IDC Ribbon Cable	105 ░C	-55 °C	Gold	UL94 V-0	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

37 Position D-Sub Receptacle, Female Sockets Connector
