L77SDBH25SOL2RM5C309

Active

Amphenol ICC (Commercial Products)

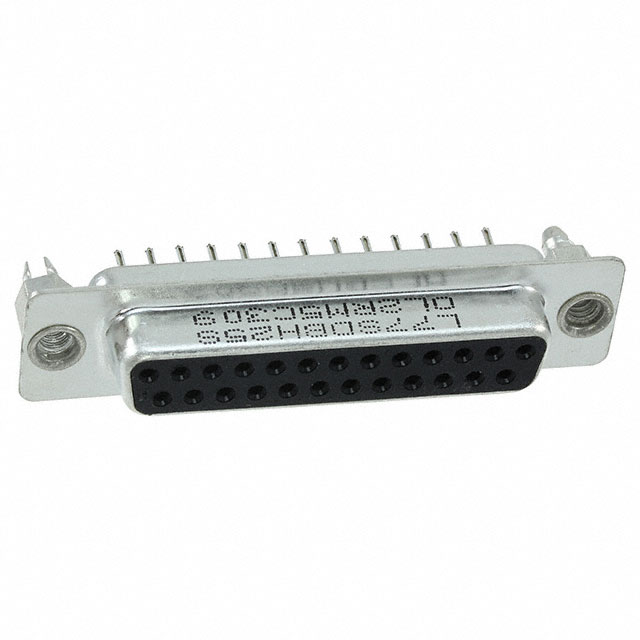

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77SDBH25SOL2RM5C309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDBH25SOL2RM5C309

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

L77SDBH25 Series

Part	Connector Type	Termination	Dielectric Material	Current Rating (Amps)	Contact Finish	Mounting Type	Contact Form	Connector Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Voltage Rating	Contact Material	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Material Flammability Rating	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8C309	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3	0.76 Ám	30 Áin	Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM5G	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3			4-40 Board Side	UL94 V-0	Flash
Amphenol ICC (Commercial Products) L77SDBH25SC309	Receptacle Female Sockets		Thermoplastic Glass Filled	3 A	Gold	Free Hanging (In-Line)	Stamped	D-Sub	Signal	-55 °C	105 ░C	2	250 VDC	Brass	Black	B DB	3	0.76 Ám	30 Áin	Cable Side	UL94 V-0		20 AWG
Amphenol ICC (Commercial Products) L77SDBH25SVF	Receptacle Female Sockets		Thermoplastic Glass Filled	3 A	Gold	Free Hanging (In-Line)	Stamped	D-Sub	Signal	-55 °C	105 ░C	2	250 VDC	Brass	Black	B DB	3			Cable Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0	Flash	20 AWG
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8GC309	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3	0.76 Ám	30 Áin	Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM5C309	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3	0.76 Ám	30 Áin	4-40 Board Side	UL94 V-0
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3			Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0	Flash
Amphenol ICC (Commercial Products) L77SDBH25SOL2	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3			4-40 Board Side	UL94 V-0	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.81
		10	$ 3.46
		25	$ 3.27
		50	$ 3.20
		100	$ 3.05
		250	$ 2.66
		450	$ 2.59
		950	$ 2.21
		2400	$ 2.06

Description

General part information

L77SDBH25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
