L77SDBH25SOL2RM8

Active

Amphenol ICC (Commercial Products)

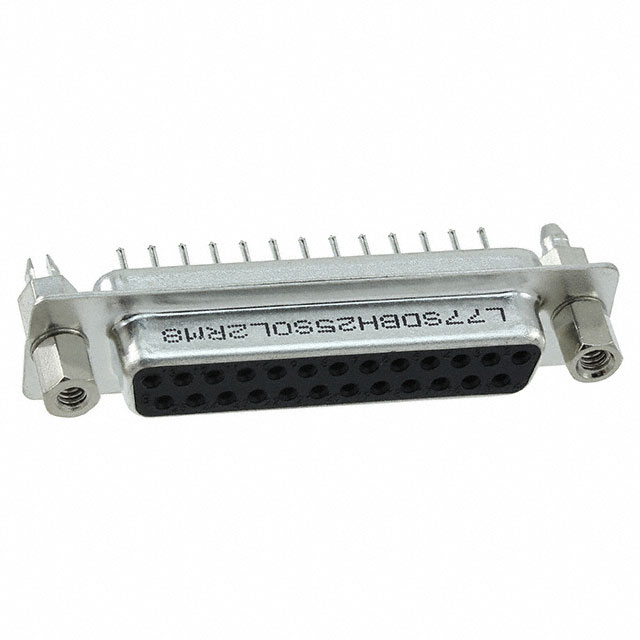

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77SDBH25SOL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDBH25SOL2RM8

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

L77SDBH25 Series

Part	Connector Type	Termination	Dielectric Material	Current Rating (Amps)	Contact Finish	Mounting Type	Contact Form	Connector Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Voltage Rating	Contact Material	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Material Flammability Rating	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8C309	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3	0.76 Ám	30 Áin	Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM5G	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3			4-40 Board Side	UL94 V-0	Flash
Amphenol ICC (Commercial Products) L77SDBH25SC309	Receptacle Female Sockets		Thermoplastic Glass Filled	3 A	Gold	Free Hanging (In-Line)	Stamped	D-Sub	Signal	-55 °C	105 ░C	2	250 VDC	Brass	Black	B DB	3	0.76 Ám	30 Áin	Cable Side	UL94 V-0		20 AWG
Amphenol ICC (Commercial Products) L77SDBH25SVF	Receptacle Female Sockets		Thermoplastic Glass Filled	3 A	Gold	Free Hanging (In-Line)	Stamped	D-Sub	Signal	-55 °C	105 ░C	2	250 VDC	Brass	Black	B DB	3			Cable Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0	Flash	20 AWG
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8GC309	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3	0.76 Ám	30 Áin	Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM5C309	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3	0.76 Ám	30 Áin	4-40 Board Side	UL94 V-0
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3			Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0	Flash
Amphenol ICC (Commercial Products) L77SDBH25SOL2	Receptacle Female Sockets	Solder	Thermoplastic Glass Filled	3 A	Gold	Through Hole	Stamped	D-Sub	Signal	-55 °C	125 °C	2	250 VDC	Phosphor Bronze	Black	B DB	3			4-40 Board Side	UL94 V-0	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.61
		10	$ 2.27
		25	$ 2.17
		50	$ 2.12
		100	$ 2.03
		250	$ 1.83
		450	$ 1.69
		950	$ 1.45
		2400	$ 1.35

Description

General part information

L77SDBH25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
