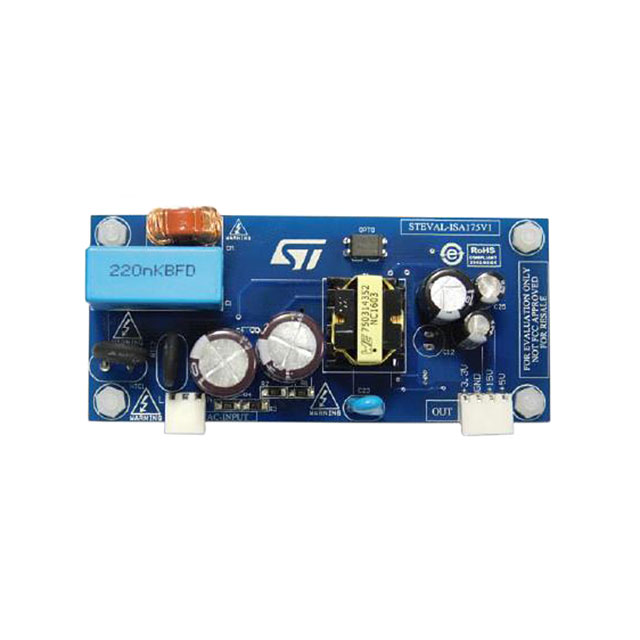

STEVAL-ISA175V1

Active

POWER MANAGEMENT IC DEVELOPMENT TOOLS 9.4 W, 15 V-5 V-3.3 V, THREE OUTPUT ISOLATED FLYBACK CONVERTER FOR SMART METER AND POWER LINE SYSTEMS USING THE VIPER26HD

Find alt

Alpha

STEVAL-ISA175V1

Active

STMicroelectronics

POWER MANAGEMENT IC DEVELOPMENT TOOLS 9.4 W, 15 V-5 V-3.3 V, THREE OUTPUT ISOLATED FLYBACK CONVERTER FOR SMART METER AND POWER LINE SYSTEMS USING THE VIPER26HD

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

STEVAL Series

The STEVAL-BFA001V1B is an industrial reference design kit designed for condition monitoring (CM) and predictive maintenance (PdM).

The hardware development kit consists of an industrial sensor board (STEVAL-IDP005V1), an adapter for the ST-LINK/V2-1 programming and debugging tool (STEVAL-UKI001V1), a 0.050" 10-pin flat cable, a 4-pole cable mount connector plug with male contacts and an M12 female connector with a 2 m cable.

The firmware package includes dedicated algorithms for advanced time and frequency domain signal processing and analysis of the 3D digital accelerometer with 3 kHz flat bandwidth. The package includes drivers for pressure, relative humidity and temperature sensor monitoring. Audio algorithms for acoustic emission (AE) are also part of the package.

Technical Specifications

Parameters and characteristics for this part

Specification	STEVAL-ISA175V1

Board Type	Fully Populated
Contents	Board
Current - Output	550mA, 200mA, 100mA
Current - Output (Value 1)	550 mA
Current - Output (Value 2)	200 mA
Current - Output (Value 3)	100 mA
Frequency - Switching	115 kHz
Isolated Output Count	3
Main Purpose	Primary Side, AC/DC
Output Type	Isolated
Regulator Topology	Flyback
Supplied Contents	Board(s)
Total Output Count	3
Utilized IC / Part	VIPer26
Voltage - Input (AC) Maximum	440 VAC
Voltage - Input (AC) Minimum	90 V
Voltage - Output	5 VDC, 3.3 V, 15 V
