Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-CCA036V1 |
|---|---|
| Amplifier Type | General Purpose |
| Board Type | Bare (Unpopulated) |
| Channels per IC | 1 - Single |
| Supplied Contents | Board(s) |
| Utilized IC / Part | 8-SOIC Package |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.07 | |
Description
General part information
STEVAL-CCA036V1

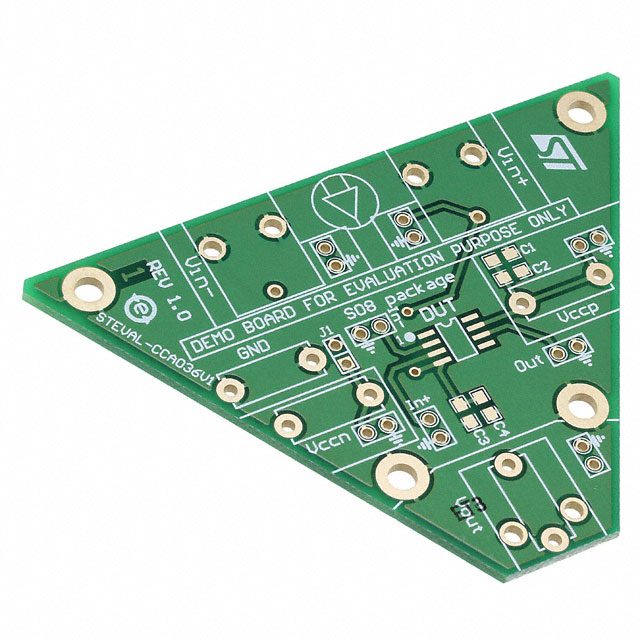

The STEVAL-CCA036V1 demonstration board is designed to help characterize single operational amplifiers in SO8 packages.
With this board, the most common op-amp based circuits can be achieved.
The board is designed for surface-mounted components and can be used to perform onboard characterization prior to the integration of STMicroelectronics’ products in your designs. Resistor and capacitor footprints are implemented for the 0805 series. A set of two decoupling capacitors have been implemented on both power supply pins so as to benefit from the maximum performances of ST products. In order to reject a wide range of frequencies, 10 nF and 4.7 μF are good values for these capacitors.
