Technical Specifications
Parameters and characteristics for this part

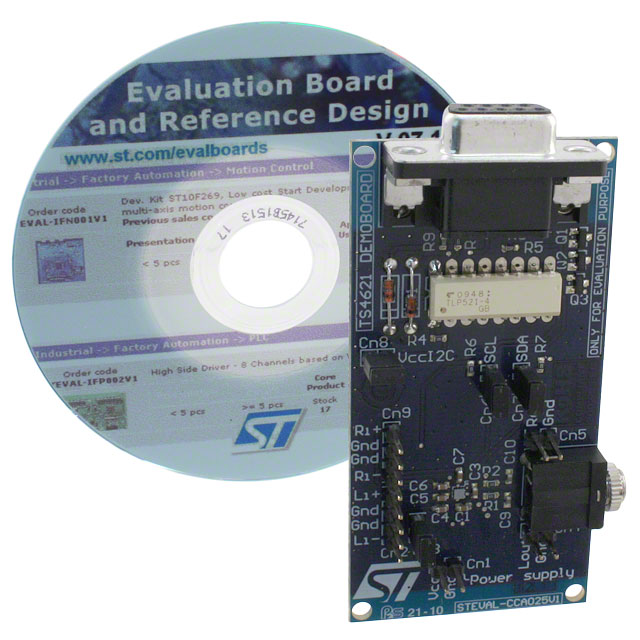

| Specification | STEVAL-CCA025V1 |
|---|---|
| Amplifier Type | Class G |
| Board Type | Fully Populated |
| Output Type | Headphones, 2-Channel (Stereo) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TS4621E |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.75 | |
Description
General part information
STEVAL-IDB005V1D Series
The STEVAL-BFA001V1B is an industrial reference design kit designed for condition monitoring (CM) and predictive maintenance (PdM).
The hardware development kit consists of an industrial sensor board (STEVAL-IDP005V1), an adapter for the ST-LINK/V2-1 programming and debugging tool (STEVAL-UKI001V1), a 0.050" 10-pin flat cable, a 4-pole cable mount connector plug with male contacts and an M12 female connector with a 2 m cable.
The firmware package includes dedicated algorithms for advanced time and frequency domain signal processing and analysis of the 3D digital accelerometer with 3 kHz flat bandwidth. The package includes drivers for pressure, relative humidity and temperature sensor monitoring. Audio algorithms for acoustic emission (AE) are also part of the package.
