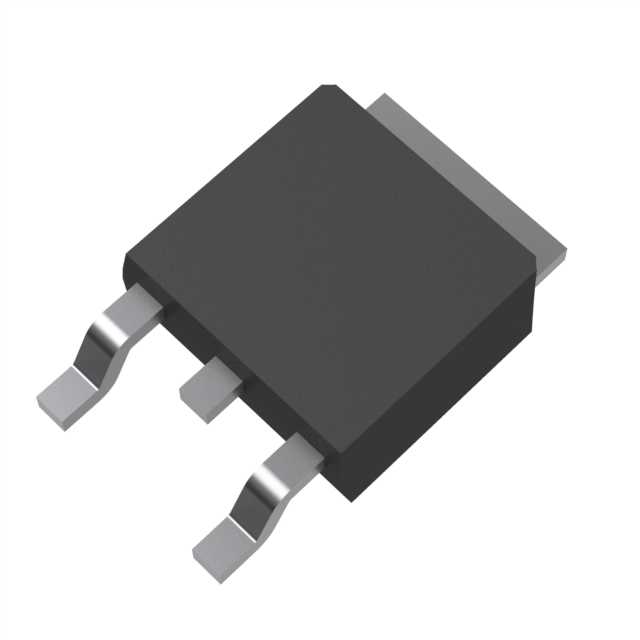

DSC08C065D1-13

Active

Diodes Inc

SILICON CARBIDE RECTIFIER TO252

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

DSC08C065D1-13

Active

Diodes Inc

SILICON CARBIDE RECTIFIER TO252

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DSC08C065D1-13

Capacitance @ Vr, F	278 pF
Current - Average Rectified (Io)	8 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Speed	200 mA, 500 ns
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

DSC08C065D1 Series

Silicon Carbide Schottky Diode

Part	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Speed	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)
Diodes Inc DSC08C065D1-13	DPAK (2 Leads + Tab) SC-63 TO-252-3	175 ░C	-55 C	650 V	SiC (Silicon Carbide) Schottky	Surface Mount	1.7 V	200 mA 500 ns	278 pF	200 µA	8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.98
		10	$ 1.64
		100	$ 1.31
		500	$ 1.11
		1000	$ 0.94
	Digi-Reel®	1	$ 2.76
		10	$ 1.78
		100	$ 1.23
		500	$ 0.99
		1000	$ 0.92
	Tape & Reel (TR)	2500	$ 0.86

Description

General part information

DSC08C065D1 Series

Packaged in the robust industry-standard TO252 (Type WX) package, the DIODESTM DSC08C065D1 provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode, or blocking diode in: power factor correction, industrial motor drivers, power inverters, SMPS, UPS.
